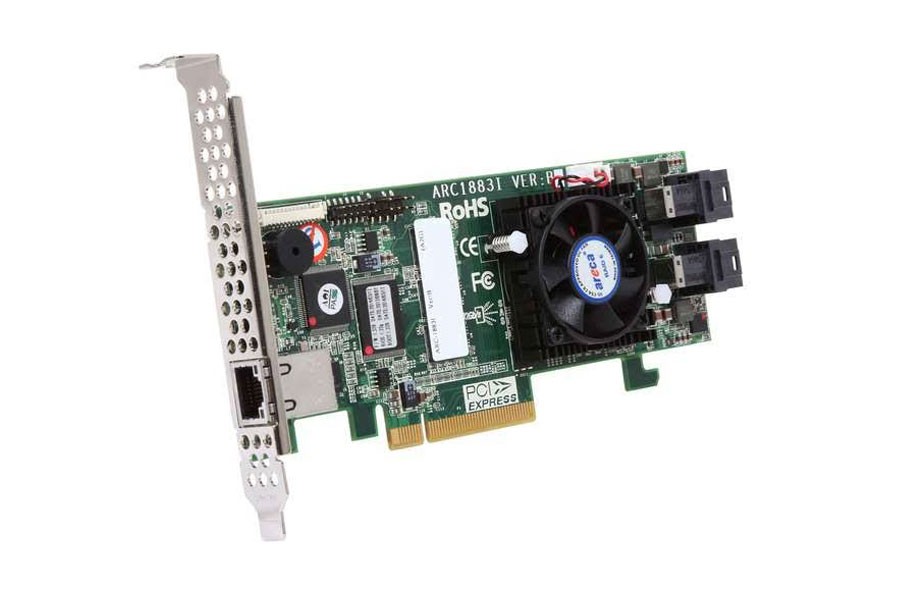

Areca ARC-1883i 12GB/s 8-Port PCI-Express 3.0 x8 SAS RAID Adapter
- 0, 1,1E, 3, 5, 6, 10, 30, 50, 60 or JBOD
- 2 x SFF-8643 mini-SAS HD Internal Connectors
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU | ARC-1883i |
Details | General
Brand: areca Model: ARC-1883i Specifications
Type: SAS Internal Connectors: 2 x SFF-8643 mini-SAS HD Interface: PCI-Express 3.0 x8 Cache Memory: 2GB on-board DDR3-1866 SDRAM RAID: 0, 1,1E, 3, 5, 6, 10, 30, 50, 60 or JBOD Operating Systems Supported: Windows 8/Server2012/7/2008/Vista/Server 2003/XP Linux FreeBSD VMware (only driver package available w/o management utility) Solaris 10/11 x86/x86_64 Mac OS X 10.4.x/10.5.x/10.6.x/10.7.x/10.8.x/10.9.x Dimensions: 169.5mm x 64.4mm Features Dual Core RAID-on-Chip 1.2 GHz Write-through or write-back cache support
Multi-adapter support for large storage requirements
Supports up to 256 SATA or SAS devices using SAS expanders
12Gb/s throughput at each drive ports
Boot support for the uEFI host BIOS
NVRAM for RAID event & transaction log
Redundant flash image for controller availability
|
BBU
ARC-6120BA-T121-12G BBU for RAID ARC-1883 series
+ $150.00
