Supermicro 4U/ Tower 8 Bays Dual Processor SuperServer
Whisper Quiet Workstation
- Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 / v3 family; QPI up to 9.6GT/s
- Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots
- 3x PCI-E 3.0 x16, 2x PCI-E 3.0 x8, and 1x PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC
- Intel® i210 Dual port GbE LAN
- 7.1 HD Audio
- 8x 3.5" Hot-swap SATA HDD Bays
- 1200W High Efficiency Power Supply Platinum Level (94%)
- Tower or Rackmount

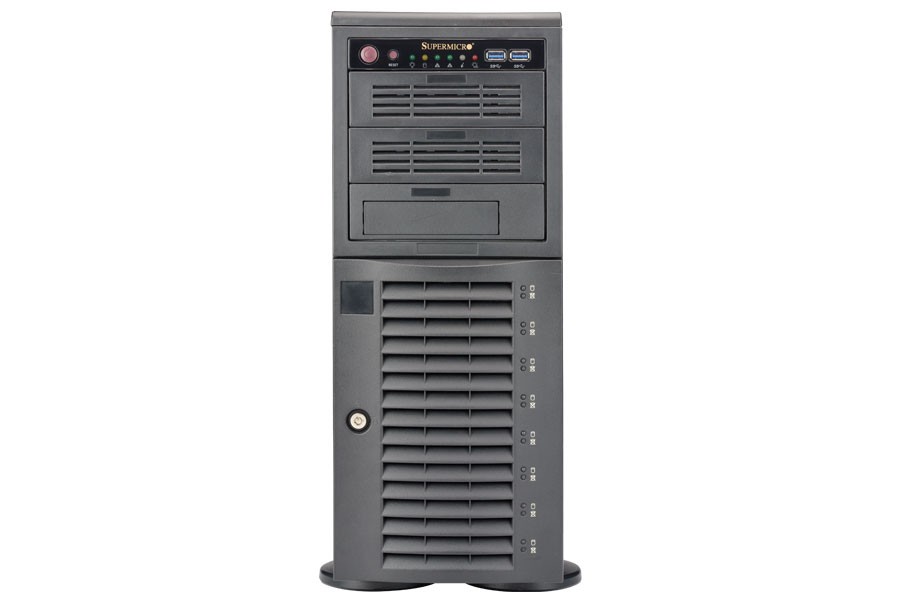

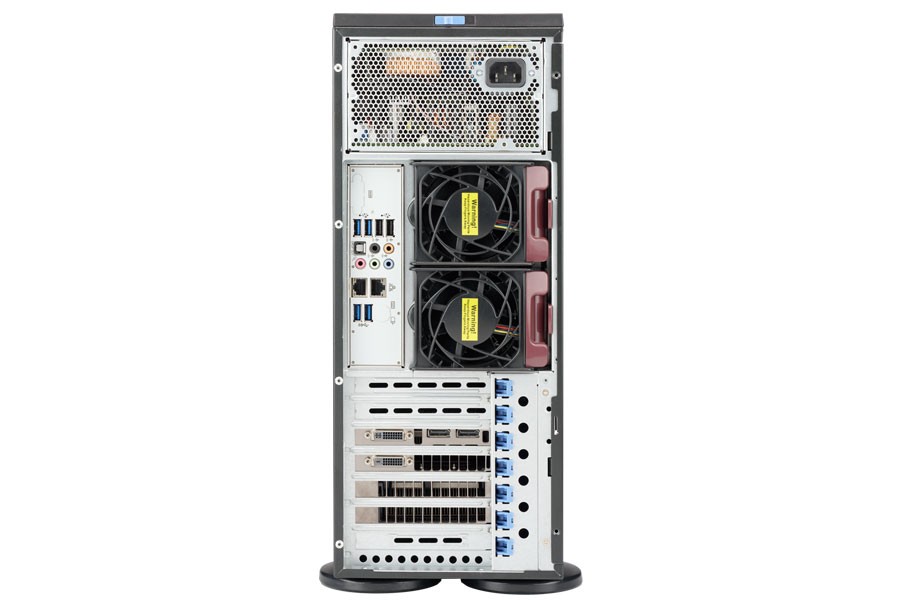

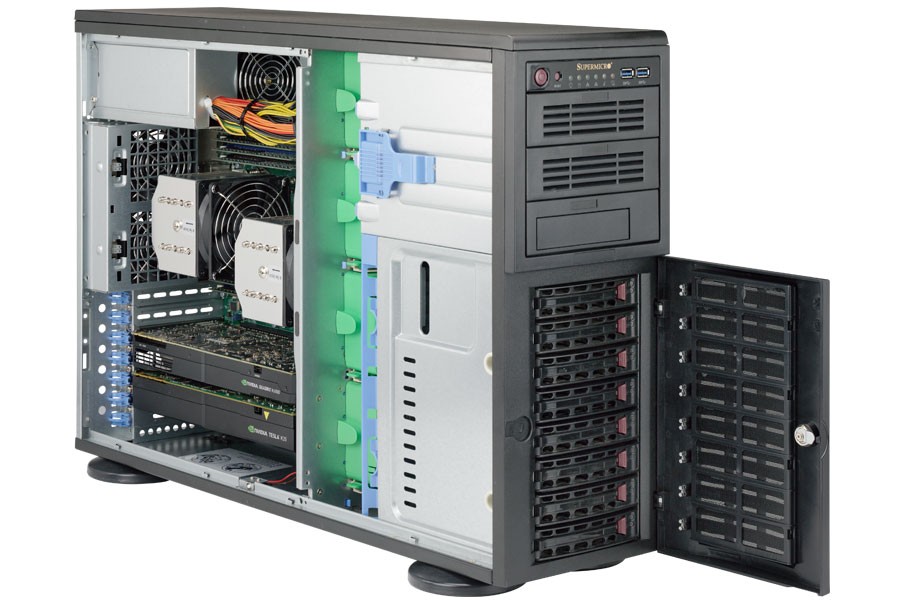

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | 7048A-T |
| Processor | CPU:
Intel® Xeon® processor E5-2600 v4 / v3 family (up to 160W TDP) Dual Socket R3 (LGA 2011) Cores / Cache: Up to 22 Cores / Up to 55MB Cache System Bus: QPI up to 9.6 GT/s Note: BIOS version 2.0 or above is required Please contact sales for additional information about frequency optimized CPUs and specialized system optimization. |
| Memory | Memory Capacity:
16x 288-pin DDR4 DIMM slots Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM Memory Type: 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes: RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB Memory Voltage: 1.2 V Error Detection: Corrects single-bit errors |
| Chassis | 4U Rackmountable / Tower
|
| Dimensions | Height:
17.8" (452mm) Width: 7.0" (178mm) Depth: 25.5" (648mm) Available Colors: Black |
| Front Panel | Buttons:
Power On/Off button System Reset button LEDs: Power LED Hard drive activity LED 2x Network activity LEDs System Overheat / Fan Fail LED Ports: 2x front USB 3.0 Ports |
| Bios | BIOS Type:
128Mb SPI Flash EEPROM with AMI® BIOS BIOS Features: Plug and Play (PnP) APM 1.2 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1 |
| Onboard Devices | Chipset:
Intel® C612 Express chipset SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10 Network Controllers Intel® i210 Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Audio: RealTek ALC889 7.1 High Definition Audio with S/PDIF header |
| HDD Drive Bays | Hot-swap:
8x 3.5" Hot-swap SAS/SATA Drive Trays Peripheral Bay(s) [90o Rotatable]: 3x 5.25" Drive Bays |
| Expansion Slots | 3x PCI-E 3.0 x16 slots
2x PCI-E 3.0 x8 slots 1x PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC |
| Power Supply | 1200W high-efficiency power supply w/ PMBus
AC Input: 1000W: 100-114.9 V, 50-60 Hz, 12 Amp 1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp DC Output 1000W max 1200W max: +3.3V / +5V / +12V / -12V / +5VSB 20A / 20A / 83A / 0.3A / 3A 20A / 20A / 99A / 0.3A / 3A Note: Max. continuous combined load on +3.3V and +5V output shall not exceed 120W. Certification: 80 plus Platinum Certified |
| Input Output | SATA:
10x SATA3 (6Gbps) ports LAN: 2x RJ45 Gigabit Ethernet LAN ports USB: 6x USB 3.0 ports (4 rear + 2 via header) 5x USB 2.0 ports (2 rear + 2 via header + 1 Type A) Audio: 7.1 HD Audio with optical S/PDIF DOM: 1x DOM (Disk on Module) power connector TPM: 1x TPM 1.2 20-pin Header |
| Cooling | 2x 2800 RPM Fans
1x 2700 RPM Fan |
| Operating Environment | RoHS:
RoHS Compliant Environmental Spec.: Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|
|
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
*No Processor
Added
MEMORY
Select Memory Capacity:
*No Memory
Added
Enterprise-Class HDD/SSD
Select Storage Capacity:
*No Hard Drive
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
+ $129.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $172.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $199.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $249.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $299.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $302.00
OPTICAL DRIVE
*No CD-ROM
Added
5.25" SATA 24x DVDRW DVDR DL Double Layer Internal Drive
+ $30.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Linux Fedora Workstation Edition Linux 64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
