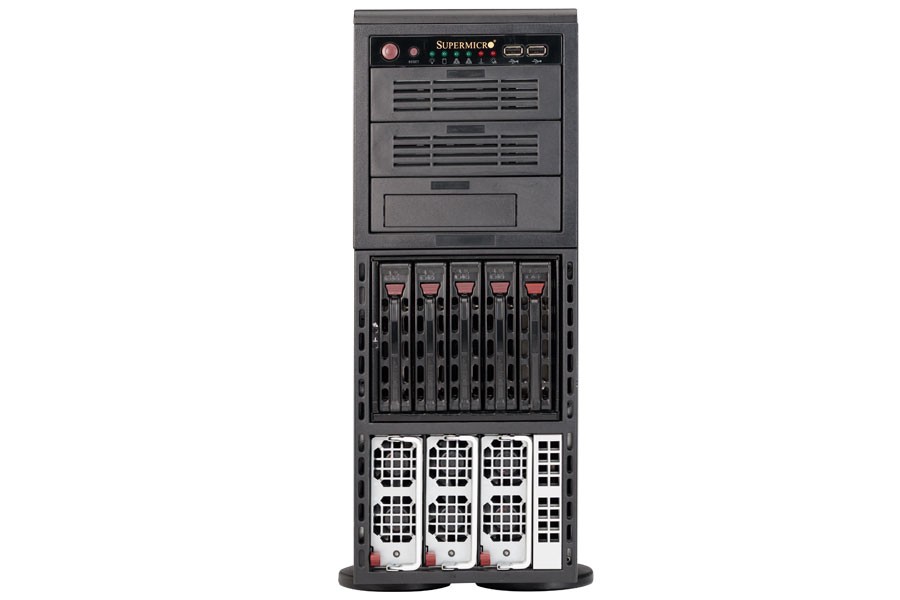

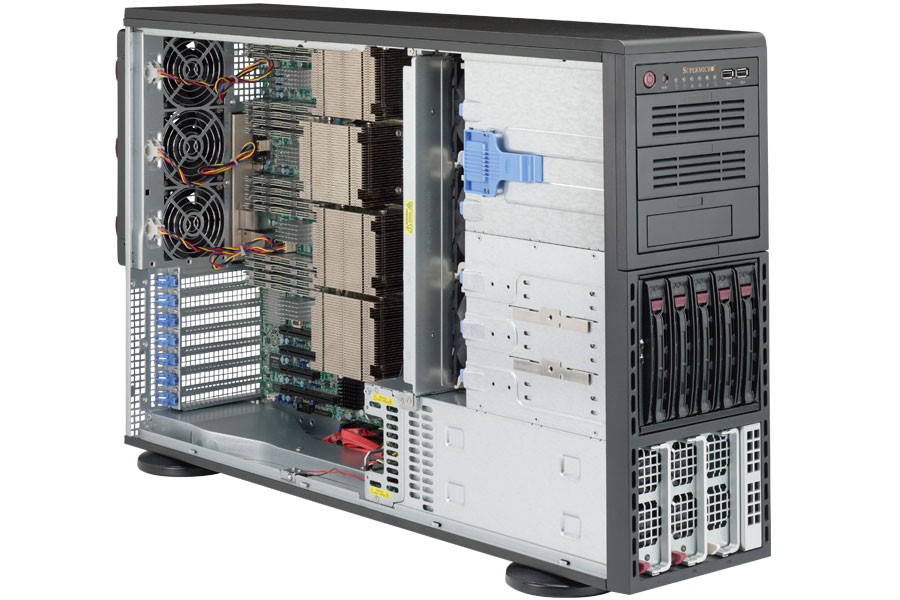

Supermicro 4U/Tower 5 bays 4 Processor SuperServer
- Quad socket R1 (LGA 2011) supports Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
- Up to 2TB DDR3 (64GB LRDIMM), up to 1600MHz; 32x DIMM slots
- 2x PCI-E 3.0 x16 FH slot; 2x PCI-E 3.0 x8 FH slot
- Intel® X540 Dual port 10GBase-T

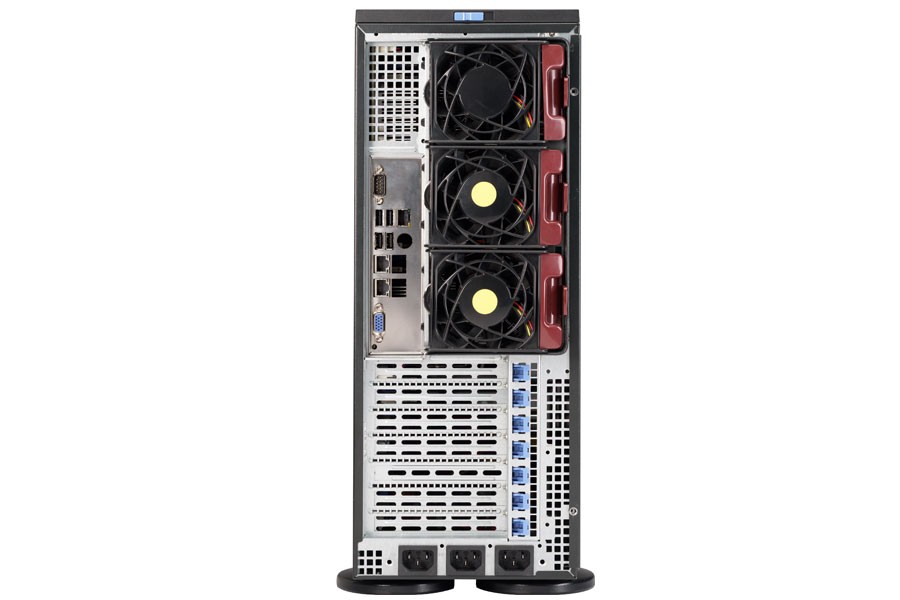

- I/O ports: 2x 10GBase-T, 1x Dedicated LAN for IPMI Remote Management, 1x VGA, 1x COM port, 3x USB 2.0
- 5x 3.5" Hot-swap SAS2 Drive Bays; SAS2 via onboard LSI 3008
- 3x 9cm + 3x 8cm Heavy Duty fans with speed control
- 1400W Redundant Digital PS Platinum Level (95%)
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | 8048B-C0R3FT |
| Processor | CPU:
Intel® Xeon® processor E7-8800 v3 / E7-4800 v3 / E7-8800 v2 / E7-4800 v2 family (up to 18 Cores and 165W TDP) Quad Socket R1 (LGA 2011) Cache: Up to 45 MB System Bus: QPI up to 9.6 GT/s |
| Memory | Memory Capacity:
32x 240-pin DDR3 DIMM slots Supports up to 2TB DDR3, ECC Registered memory (RDIMM/LRDIMM) in 32 DIMM slots Memory Type: 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes: 64GB, 32GB, 16GB, 8GB, 4GB Memory Voltage: 1.5 V, 1.35 V Error Detection: Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| Chassis | 4U/Tower Chassis
|
| Dimensions | Height:
18.2" (462mm) Width: 7.0" (178mm) Depth: 28.4" (721mm) |
| Bios | BIOS Type:
16MB SPI Flash EEPROM with AMI® BIOS BIOS Features: Plug and Play (PnP) PCI 2.2 ACPI up to 3.0 USB Keyboard support |
| Onboard Devices | Chipset:
Intel® C602J chipset SAS: SAS2 (6Gbps) via LSI® 3008 controller SATA: SATA2 (3Gbps) with RAID 0, 1, 5, 10 SATA3 (6Gbps) with RAID 0, 1 IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers: Intel® X540 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201F PHY (dedicated IPMI) Graphics: ASPEED 2400 |
| HDD Drive Bays | 5x 3.5" Hot-swap Drive Bays
|
| Expansion Slots | PCI-Express:
2x PCI-E 3.0 x16 Full-heigh slot 2x PCI-E 3.0 x8 Full-heigh slot |
| Power Supply | Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage: 100-240 V, 50-60 Hz, 15 Amp max +12V: 100 Amp/115 Vac 117 Amp/230 Vac With Power Distributor: +5V: 30 Amp +3.3V: 25 Amp -12V: 0.6 Amp Certification: 80 plus Platinum Level Certified |
| Input Output | SAS:
8x SAS2 ports (6Gbps) LAN: 2x RJ45 10GBase-T ports 1x dedicated LAN port for IPMI on AOM USB: 3x USB 2.0 rear ports Serial Port / Header: 2x Fast UART 16550 ports: 1 rear and 1 header DOM: 2x DOM (Disk on Module) power connectors |
| Cooling | Fans:
3x 9cm Heavy Duty fans with speed controlCooling Fans 3x 8cm Heavy Duty fans with speed controlCooling Fans Shrouds: 1x Air Shroud (MCP-310-74806-0B) |
| Operating Environment | RoHS:
RoHS Compliant Environmental Spec.: Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|
|
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
*No Processor
Added
Intel® Xeon® Processor E7-4809 v4 (20M Cache, 2.10 GHz,115W)
+ $1,508.00
Intel® Xeon® Processor E7-4820 v4 (25M Cache, 2.00 GHz,115W)
+ $1,846.00
Intel® Xeon® Processor E7-4830 v4 (35M Cache, 2.00 GHz,115W)
+ $2,665.00
Intel® Xeon® Processor E7-4850 v4 (40M Cache, 2.10 GHz,115W)
+ $3,679.00
Intel® Xeon® Processor E7-8860 v4 (45M Cache, 2.20 GHz,140W)
+ $4,966.00
Intel® Xeon® Processor E7-8867 v4 (45M Cache, 2.40 GHz,165W)
+ $5,707.00
Intel® Xeon® Processor E7-8870 v4 (50M Cache, 2.10 GHz,140W)
+ $5,707.00
Intel® Xeon® Processor E7-8893 v4 (60M Cache, 3.20 GHz)
+ $8,359.00
Intel® Xeon® Processor E7-8890 v4 (60M Cache, 2.20 GHz,165W)
+ $8,749.00
MEMORY
Select Memory Capacity:
*No Memory
Added
Enterprise-Class HDD/SSD
Select Storage Capacity:
*No Hard Drive
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
+ $129.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $172.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $199.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $249.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $299.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $302.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Linux Fedora Workstation Edition Linux 64-bit (No Media)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
