Supermicro 4u up to 48 Bays 4 Processor SuperServer
- Quad socket R1 (LGA 2011) supports Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
- Up to 6TB DDR3 1600MHz ECC RDIMMs and LRDIMMs; 96x DIMM slots
- Up to 11x PCI-E 3.0 slots (4 x16, 7 x8)
- I/O ports via Add-on Card: 2x 10Gb LAN, 1x Dedicated LAN for IPMI Remote Management, 1x VGA
- 24x 2.5" Hot-swap SAS3/SATA3 HDD or SSD (selected RAID/HBA cards); 48x 2.5" Hot-swap HDD/SSD optional
- 4x 9cm + 3x 8cm Heavy-duty Fans
- 1620W Redundant (N+1) Power Supplies, Platinum Level (94%)
Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact sales rep for special requirements.
96/64/32 DIMMs are the recommended memory population configurations for the best performance.

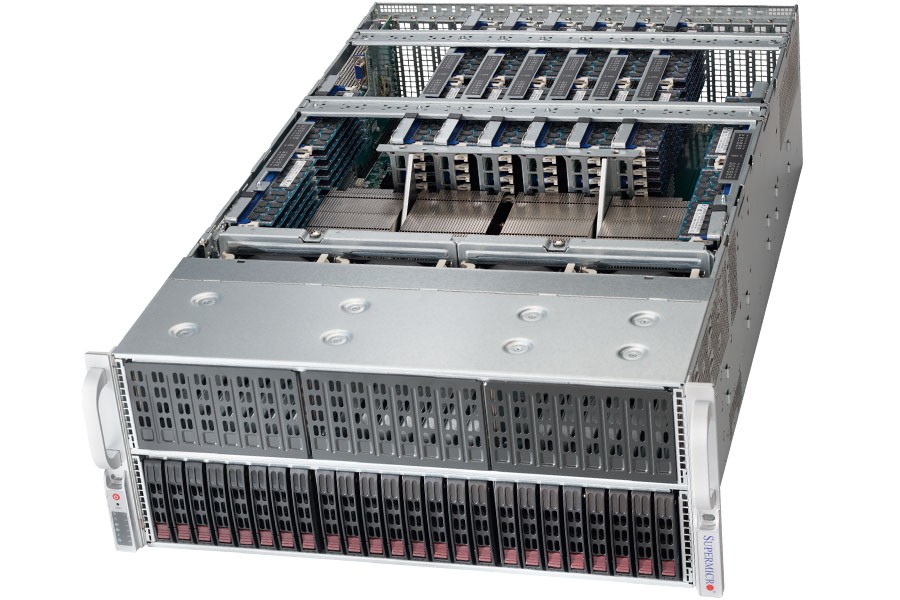

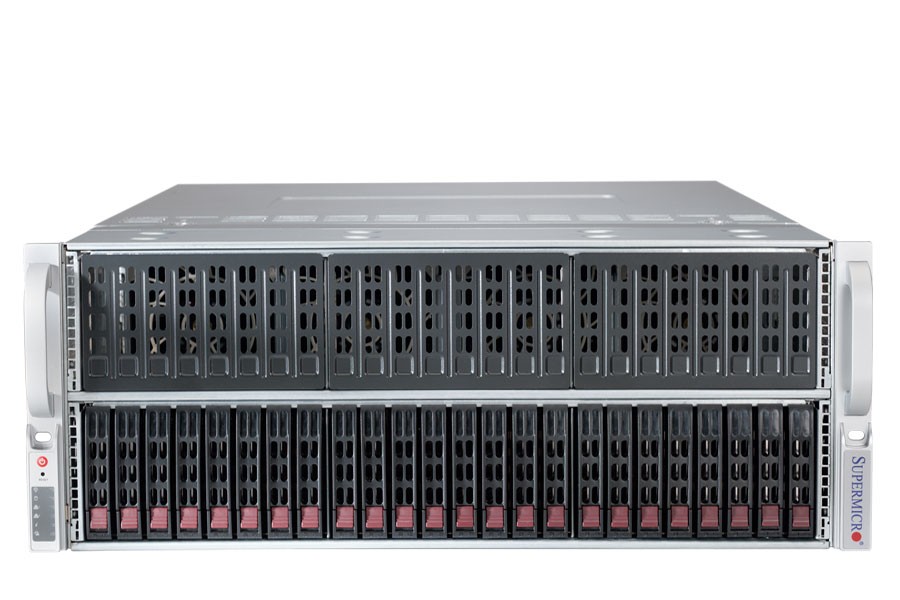

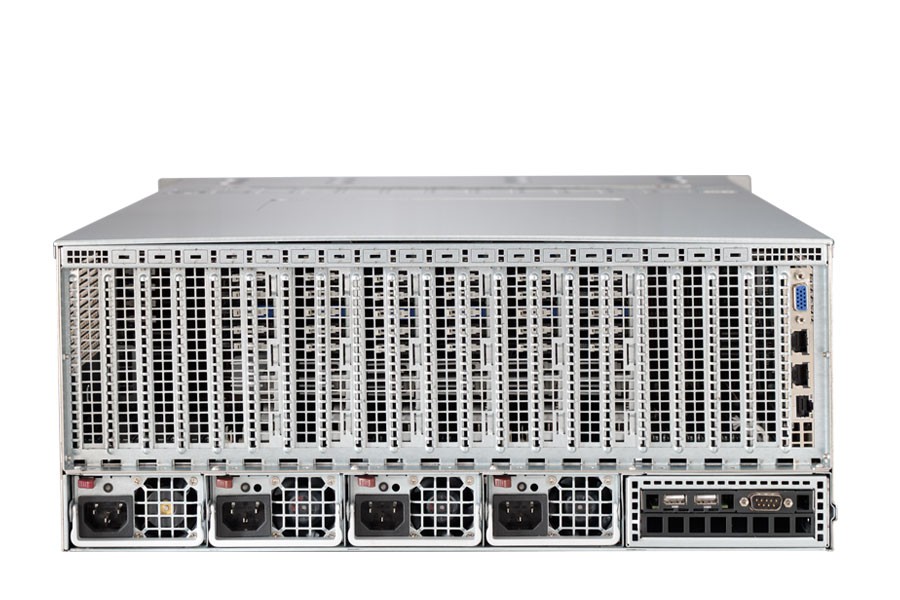

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | 4048B-TRFT |
| Processor | CPU:
Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24 Cores and 165W TDP) Quad Socket R1 (LGA 2011) Cache: Up to 60 MB System Bus: QPI up to 9.6 GT/s Note: E7-8800/4800 v2 (using MB-X10QBI-MEM1 Rev 1.01 or above) E7-8800/4800 v4/v3 (using MB-X10QBI-MEM1 Rev 2.0 or above |
| Memory | Memory Capacity:
96x 240-pin DDR3 DIMM slots Supports up to 6TB DDR3 ECC Registered memory (RDIMM) and LRDIMM in 96 DIMM slots Memory Type: 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes: 64GB, 32GB, 16GB, 8GB, 4GB Memory Voltage: 1.5 V, 1.35 V Error Detection: Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| Chassis | 4U Chassis
|
| Dimensions | Height:
7.0" (178mm) Width: 17.2" (437mm) Depth: 31.3" (795mm) |
| Bios | BIOS Type:
16MB SPI Flash EEPROM with AMI® BIOS BIOS Features: Plug and Play (PnP) PCI 2.2 ACPI up to 3.0 USB Keyboard support |
| Onboard Devices | Chipset:
Intel® C602J chipset AHCI SATA: SATA3 (6Gbps) with RAID 0, 1 SATA2 (3Gbps) with RAID 0, 1, 5, 10 Network Controllers (via AOM): Intel® X540 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBase-T , 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI) IPMI (via AOM): Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED 2400 Graphics: ASPEED 2400 |
| HDD Drive Bays | 24x 2.5" Hard drive bays (default)*
48x 2.5" Hard drive bays (optional) BPN-SAS3-216A direct attached backplane, system supports up to 24 HDDs by using selected RAID/HBA card and default HDD connection is onboard C602J chipset 2 SATA3 + 4 SATA2
|
| Expansion Slots | 11x PCI-E 3.0 slots w/ 48 memory slots (4x PCI-E 3.0 x16 and 7x PCI-E 3.0 x8)
8x PCI-E 3.0 slots w/ 96 memory slots (4x PCI-E 3.0 x16 and 4x PCI-E 3.0 x8) |
| Power Supply | 1620W high-efficiency redundant power supply w/ PMBus
AC Input: 1000W Output @ 100-120V, 12-10A, 50-60Hz 1200W Output @ 120-140V, 12-10A, 50-60Hz 1620W Output @ 180-240V, 10.5-8A, 50-60Hz DC Output: 1000W: +12V/84A; +5Vsb/4A 1200W: +12V/100A; +5Vsb/4A 1620W: +12V/150A; +5Vsb/4A Certification: 80 Plus Platinum Level Certified |
| Input Output | AHCI SATA:
2x SATA3 (6Gbps) ports 4x SATA2 (3Gbps) ports LAN: 2x RJ45 10GBase-T ports on AOM 1x dedicated LAN port for IPMI on AOM USB: 2x USB 2.0 ports Serial Port / Header: 2x Fast UART 16550 ports: 1 rear and 1 header DOM: 1 DOM (Disk on Module) power connector |
| Cooling | Fans:
4x 92mm RPM Hot-Swappable Cooling Fans 3x 80mm RPM Hot-Swappable Rear Exhaust Fan 2x 80mm Rear Exhaust Fans (optional) Shrouds: 1x Air Shroud (MCP-310-41804-0B) |
| Operating Environment | RoHS:
RoHS Compliant Environmental Spec.: Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|
|
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
*No Processor
Added
Intel® Xeon® Processor E7-4809 v4 (20M Cache, 2.10 GHz,115W)
Intel® Xeon® Processor E7-4820 v4 (25M Cache, 2.00 GHz,115W)
Intel® Xeon® Processor E7-4830 v4 (35M Cache, 2.00 GHz,115W)
Intel® Xeon® Processor E7-4850 v4 (40M Cache, 2.10 GHz,115W)
Intel® Xeon® Processor E7-8860 v4 (45M Cache, 2.20 GHz,140W)
Intel® Xeon® Processor E7-8870 v4 (50M Cache, 2.10 GHz,140W)
Intel® Xeon® Processor E7-8867 v4 (45M Cache, 2.40 GHz,165W)
Intel® Xeon® Processor E7-8893 v4 (60M Cache, 3.20 GHz)
Intel® Xeon® Processor E7-8890 v4 (60M Cache, 2.20 GHz,165W)
MEMORY
Select Memory Capacity:
*No Memory
Added
Enterprise-Class HDD/SSD
Select Storage Capacity:
*No Hard Drive
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
Debian Linux (No Media) (32-Bit/64-Bit)
Linux Fedora Workstation Edition Linux 64-bit (No Media)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
