7088B-TR4FT
Please Inquire Configured Summary
7088B-TR4FT

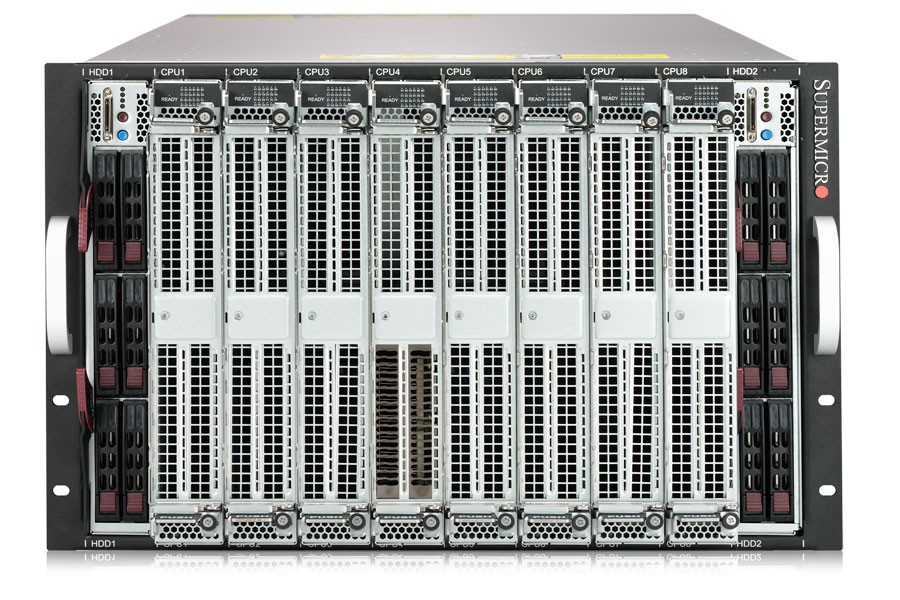

Supermicro 7U 8 Way up to 12 Hot-swap and 20 internal Bays Multiple Processor SuperServer
  • Intel® Xeon® processor E7-8800 v4/v3 up to 24-Core, 8 Sockets R1 (LGA 2011)
  • Up to 24TB in 192 DDR4 DIMM slots
  • Up to 15 PCI-E 3.0 slots (8 x16, 7 x8 in x16)
  • 4x 10Gb LAN (SIOM), 1x dedicated LAN for IPMI
  • 1x VGA, 2x USB 2.0, 1x COM via KVM
  • Up to 12 Hot-swap 2.5" SAS3 HDDs (w/ RAID cards),
  • 20x 2.5" or 6x 3.5" internal HDDs (w/ RAID cards)
  • 5x 1600W Redundant (N+1) Power Supplies, Titanium Level (96%)
Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact sales rep for special requirements.
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 7088B-TR4FT
Processor
CPU:
Intel® Xeon® processor E7-8800 v4/v3 family (up to 24 Cores and 165W TDP)
Socket R1 (LGA 2011)
Cache:
Up to 60 MB
System Bus:
QPI up to 9.6 GT/s
Memory
Memory Capacity:
192x 288-pin DDR4 DIMM slots
Supports up to 24TB DDR4 ECC 3SDS LRDIMM in 192 DIMM slots
Memory Type:
2400/2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs
DIMM Sizes:
128GB, 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage:
1.2 V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
7U Chassis
Dimensions
Height:
12.2" (310mm)
Width:
17.63" (448mm)
Depth:
28.87" (733mm
Bios
BIOS Type:
16MB SPI Flash EEPROM with AMI® BIOS
BIOS Features:
Plug and Play (PnP)
PCI 2.2
ACPI up to 3.0
USB Keyboard support)
Onboard Devices
Chipset:
Intel® C602J chipset
Storage:
Intel C602J including 2 SATA3 (SATA DOM) + 4 SATA2(2 M.2, 2 HDD)
Network Controllers(via AOM):
4-port 10GBase-T Ethernet SIOM (Intel® X550 controller)
IPMI(via AOM):
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED 2400
Graphics:
ASPEED AST2400 BMC
HDD Drive Bays
12 Hot-swap 2.5" SAS3 drive bays (w/ RAID cards)
20x 2.5" or 6x 3.5" internal drive bays (w/ RAID cards)
Expansion Slots
15 PCI-E 3.0 FH slots total
8 PCIE 3.0 x16 + 7 PCIE 3.0 x8 (in x16) slots
Up to 16 U.2 NVMe option available
Power Supply
1600W Redundant Titanium Level Power Supplies with PMBus
Total Output Power:
1000W/1600W
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
100-127Vac / 13 - 9A / 50-60Hz
200-240Vac / 10 - 8A / 50-60Hz
+12V:
Max: 83.3A / Min: 0A (100-127Vac)
Max: 133A / Min: 0A (200-240Vac)
12V SB:
Max: 2.1A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
80+ Plus Titanium Level
Input Output
Storage:
2 SATA2 (HDD) ports
2 SATA2 (M.2) ports
2 SATA3 (SATADOM) ports
LAN:
4 10GBase-T ports via SIOM
1 dedicated LAN port for IPMI
USB:
2 USB 2.0 ports via KVM port
Serial Port / Header:
1 Fast UART 16550 ports: 1 front via KVM port
Cooling
8x 9cm Hot-Swap Counter-rotating Rear Fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Backplane:
2x 6-port 12G backplane supports 6x 2.5" SAS3/SATA3 HDD/SSD

PC Health Monitoring
CPU:
Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.
4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN:
4-pin fan headers with tachometer status monitoring
Low noise fan speed control mode
Temperature:
Monitoring for CPU and system environment
Thermal Control for 9x fan connectors
Other Features:
Chassis intrusion detection
7088B-TR4FT7088B-TR4FT7088B-TR4FT7088B-TR4FT7088B-TR4FT
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
*No Processor
Added
Intel® Xeon® Processor E7-8860 v4 (45M Cache, 2.20 GHz,140W)
Intel® Xeon® Processor E7-8867 v4 (45M Cache, 2.40 GHz,165W)
Intel® Xeon® Processor E7-8870 v4 (50M Cache, 2.10 GHz,140W)
Intel® Xeon® Processor E7-8893 v4 (60M Cache, 3.20 GHz)
Intel® Xeon® Processor E7-8890 v4 (60M Cache, 2.20 GHz,165W)
MEMORY
Select Memory Capacity:
*No Memory
Added
Enterprise-Class HDD/SSD
Select Storage Capacity:
*No Hard Drive
Added
(optional) Enterprise-Class HDD/SSD
*No Hard Drive
Added
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Debian Linux (No Media) (32-Bit/64-Bit)
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
