1029P-WTR
$2,219.00 Configured Summary
1029P-WTR
Supermicro 1U 8Bays Dual 2nd Gen Scalable Processor Rackmount Server

  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 2x PCI-E 3.0 x16 (FHHL) slots, 1x PCI-E 3.0 x8 (LP) slot, 1x PCI-E 3.0 x16 for Add-on-Module, 1x PCI-E M.2 SSD slot
  • 8x Hot-swap 2.5" SAS/SATA drive bays
  • Optional 1 slim DVD-ROM drive bay
  • 2x 1GbE LAN ports via Intel® X722
  • 1x VGA, 4 USB 3.0 (rear)
  • 2x SuperDOM (Disk on Module) ports
  • 750W Redundant Power Supplies Platinum Level High-efficiency
  • Web Server, Firewall Apps., Corporate-Wins, DNS, Print, Login, Gateway, provisioning servers, Compact Network Appliance, Cloud Computing

Storage configuration notice:
Hot-swap:
8x Hot-swap 2.5" SAS/SATA drive bays
M.2:
1x M.2 Drive

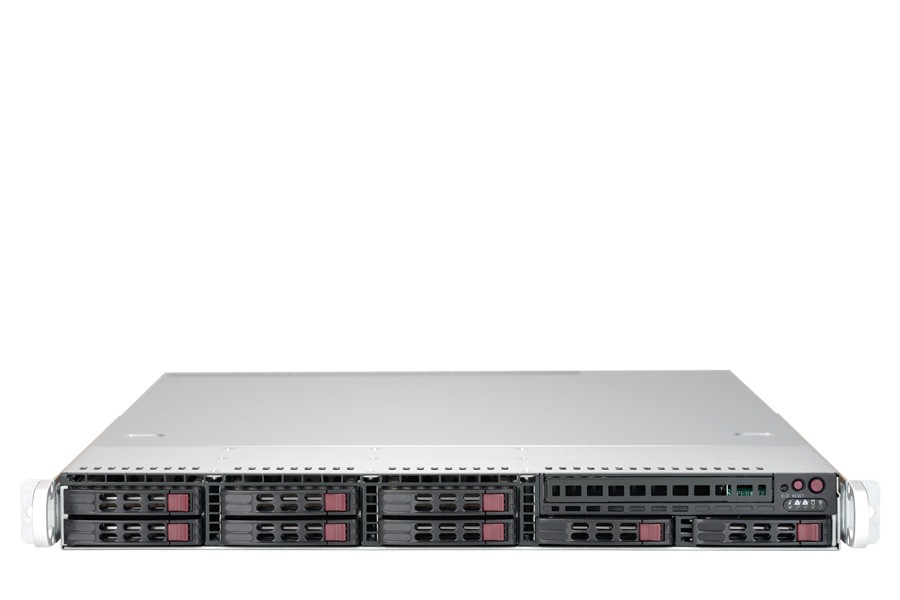

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-1029P-WTR
Processor
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake),
Dual UPI up to 10.4GT/s
Support CPU TDP 70-165W
Cores:
Up to 28 Cores
Note:
Certain high Frequency optimized CPU within 165Ws are not supported, for example, Intel Gold 6144 and 6146 are not supported on the system.
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
Memory Capacity:
12 DIMM slots
Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
1U Rackmount Chassis
Dimensions
Width:
17.2" (437mm)
Height:
1.7" (43mm)
Depth:
23.5" (597mm)
Front Panel
Buttons:
Power On/Off button
UID button
LEDs:
Power status LED
HDD activity LED
Network activity LEDs
Universal Information (UID) LED
Bios
BIOS Type:
AMI 32Mb SPI Flash ROM
Onboard Devices
Chipset:
Intel® C621 chipset
SATA:
SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers:
Intel® X722 Gigabit Ethernet controller
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video:
ASPEED AST2500 BMC
HDD Drive Bays
Hot-swap:
8x Hot-swap 2.5" SAS/SATA drive bays
Optical Drive
Peripheral:
1x Slim DVD-ROM drive bay (optional)
Expansion Slots
2x PCI-E 3.0 x16 (FHHL) slots
1x PCI-E 3.0 x8 (LP) slot
1x PCI-E 3.0 x16 for Add-on-Module (AOM)
1x PCI-E M.2 SSD slot
Power Supply
700W/750W Redundant Power Supplies with PMBus
Total Output Power:
700W/750W
Dimension (W x H x L):
54.5 x 40 x 320 mm
Input:
100 - 140Vac / 8 - 6A / 50-60Hz
200 - 240Vac / 4.5 - 3.8A / 50-60Hz
200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V:
Max: 58A / Min: 0.5A (100 - 140Vac)
Max: 62A / Min: 0.5A (200 - 240Vac)
Max: 62A / Min: 0.5A (200 - 240Vdc)
(CB/CCC Only)
+5V sb:
Max: 3A / Min: 0A
Output Type:
Gold Finger Connector Mating with Molex 45984-4343
Certification:
Platinum Level
Input Output
SATA:
8x SATA3 (6 Gbps) ports
LAN:
2x RJ45 Gigabit Ethernet ports
1x RJ45 Dedicated IPMI LAN port
USB:
4x USB 3.0 ports (rear)
Video:
1x VGA port
Serial Port / Header:
1x Fast UART 16550 header
DOM:
2x SuperDOM (Disk on Module) ports
Cooling
4x Counter-rotating 4cm PWM fans, 2x fans for cooling AOC
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   0°C ~ 50°C (32°F ~ 122°F)
Non-operating Temperature:
   -20°C to 60°C (-4°F to 140°F)
Operating Relative Humidity:
   10% to 85% (non-condensing)
Non-operating Relative Humidity:
   10% to 95% (non-condensing)
Details
Management
Software:
Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
SSM, SPM, SUM
SuperDoctor® 5
Watch Dog
Power Configurations:
ACPI / APM Power Management

PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
1029P-WTR1029P-WTR1029P-WTR1029P-WTR
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
MEMORY
Select Memory Capacity:
Samsung 8GB DDR4 2933 ECC RDIMM Memory
+ $160.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $172.00
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $284.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $296.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $496.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $508.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $992.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $1,004.00
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
+ $1,084.00
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
+ $1,140.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $3,020.00
Enterprise-Class HDD/SSD
Select Storage Capacity:
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $85.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $122.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $304.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $707.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,214.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $83.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $168.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $402.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $870.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $75.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $28.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $68.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $100.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $263.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $603.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,222.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $93.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $186.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $393.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $65.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $230.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $653.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
- $65.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
- $40.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
- $4.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $93.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $317.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $217.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $401.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $780.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,382.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $2,850.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $5,858.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $260.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $286.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $780.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $221.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $325.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $126.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $158.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 1TB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $291.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $466.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $861.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
OPTICAL DRIVE
*No CD-ROM
Added
8x Slim Internal DVD-RW
+ $35.00
NETWORK CARD
NETWORK ADAPTERNETWORK ADAPTERNETWORK ADAPTER
*No Network Adapter
Added
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Linux Fedora Workstation Edition Linux 64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2033
1
1869.0000
Servers
Cloud
Solutions
Workstations
Components



Copyright©  Yang Ming International Corp. All Rights Reserved.
595 Yorbita Road, La Puente, CA 91744 | Tel:(800)526-8650 | Tel:(626)956-0100 | Fax:(626)956-0098







About Superxpert
SuperXpert.com a member of Yang Ming International Corporation is located in city of La Puente, With a state-of-the-art R&D and manufacturing facility, the company has grown organically, providing cutting edge technological products backed up with tech-savvy engineers, four full-scale assembly lines, and a sophisticated testing lab. In addition we use the latest cutting edge technology to produce some of the server and data storage solutions, we also following strict green manufacturing practices to make sure we are as environmentally conscious as possible. Here at Superxpert, we strive to continue our innovation in server and data storage and IT solutions, and aim to provide even better products and services to our clients.
Super Micro Server & Computer
Supermicro® is the global leader in high-performance, high-efficiency server technology and innovation is a premier provider of end-to-end green computing solutions for Enterprise IT, Datacenter, Cloud Computing, HPC and Embedded Systems worldwide. Supermicro's advanced server Building Block Solutions® offers a wide varity of modular, interoperable components for building energy-efficient, application-optimized, computing solutions. This broad line of products includes servers, blades, GPU systems, workstations, motherboards, chassis, power supplies, storage technologies, networking solutions and SuperRack® cabinets/accessories. Architecture innovations include Twin Architecture, SuperServer®, SuperBlade®, MicroCloud, Super Storage Bridge Bay (SBB), Double-Sided Storage™, Universal I/O (UIO) and WIO expansion technology all of which deliver unrivaled performance and value.
Excellence in Customer Service
Today, SuperXpert.com continues to strive to help customers quickly implement solutions to IT challenges. SuperXpert.com provide a wide range of Intel and AMD rackmount servers with form factors from 1U through 9U and offers various innovative computing solutions for HPC, Data Center, Virtualization, Clustering, GPU, and Cloud Computing applications to help customers meet today demands of high computing capacity and competitiveness. All this to go along with our professional and knowledgeable staff always make sure our customers receives the best service possible.
