6049P-E1CR45H
Please Inquire Configured Summary

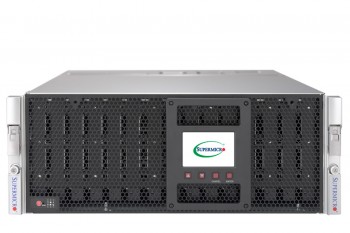

6049P-E1CR45H
Supermicro 4U 45Bays Dual 2nd Gen Scalable Processor Rackmount Server

  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card support (flexible networking) Note: must bundle with Network card
  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays with SES3; 2 rear Hot-swap 2.5" drive bays; optional 6 NVMe bays
  • Broadcom 3108 SAS3, HW RAID
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5 Hot-swap 8cm rear exhaust PWM fans
  • 1600W Redundant Power Supplies Platinum Level (94%)
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN

Storage configuration notice:
Hot-swap：
45x Hot-swap 3.5" SAS3/SATA3 drive bays
2x Rear Hot-swap 2.5" SATA drive bays
Optional：
6x NVMe bays (optional)
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 24 HDDs and 1 NIC or SIOM card).
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 6049P-E1CR45H
Processor
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake), 3 UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores:
Up to 28 Cores
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
Memory Capacity:
24 DIMM slots
Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
4U Rackmount Chassis
Dimensions
Width:
17.2" (437mm)
Height:
7" (178mm)
Depth:
26" (660mm)
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power status LED
Hard drive activity LED
Network activity LEDs
System Overheat LED
Power fail LED
Bios
BIOS Type:
AMI UEFI
Onboard Devices
Chipset:
Intel® C621 chipset
SAS:
SAS3 (12Gbps) via Broadcom 3108; HW RAID
RAID 0, 1, 5, 6, 10, 50, 60
SATA:
SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
Hot-swap:
45x Hot-swap 3.5" SAS3/SATA3 drive bays
2x Rear Hot-swap 2.5" SATA drive bays
Optional:
6x NVMe bays (optional)
Expansion Slots
PCI-Express:
2x PCI-E 3.0 x16 slots
1x PCI-E 3.0 x8 slot
1x SIOM card support
(must bundle with network card)
Power Supply
1600W 1U Redundant Power Supplies with PMBus
Total Output Power:
1000W/1600W
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
100-127Vac / 12.9A Max / 50-60Hz
200-240Vac / 9.5A Max / 50-60Hz
+12V:
Max: 82A / Min: 0.1A (100-127Vac)
Max: 132A / Min: 0.1A (200-240Vac)
12V SB:
Max: 2A / Min: 0.2A
Output Type:
25 Pairs Gold Finger Connector
Certification:
Platinum Level Certified94%+  Platinum Level
Input Output
Serial ATA:
8x SATA3 (6Gbps) ports
LAN:
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.0 ports (rear)
1x Type A
VGA:
1x VGA D-Sub connector port
Serial Port / Header:
1x Fast UART 16550 port / 1x Header
Cooling
5x Hot-swap 8cm rear exhaust PWM fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:
Intel® Node Manager
IPMI 2.0
NMI
SSM, SPM, SUM
SuperDoctor® 5
Watchdog

PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors

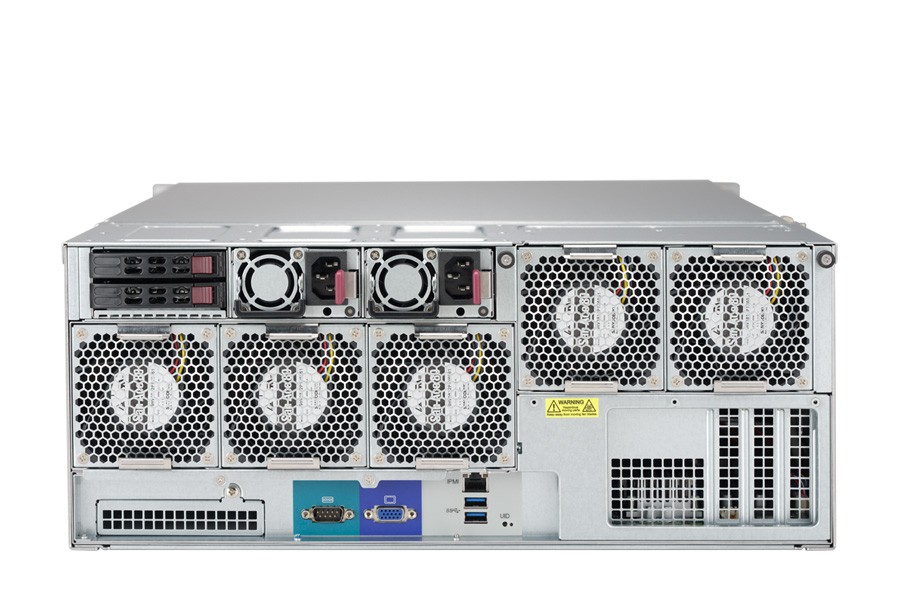

6049P-E1CR45H6049P-E1CR45H6049P-E1CR45H
