SYS-751GE-TNRT-NV1
$61,844.00 Configured Summary
SYS-751GE-TNRT-NV1

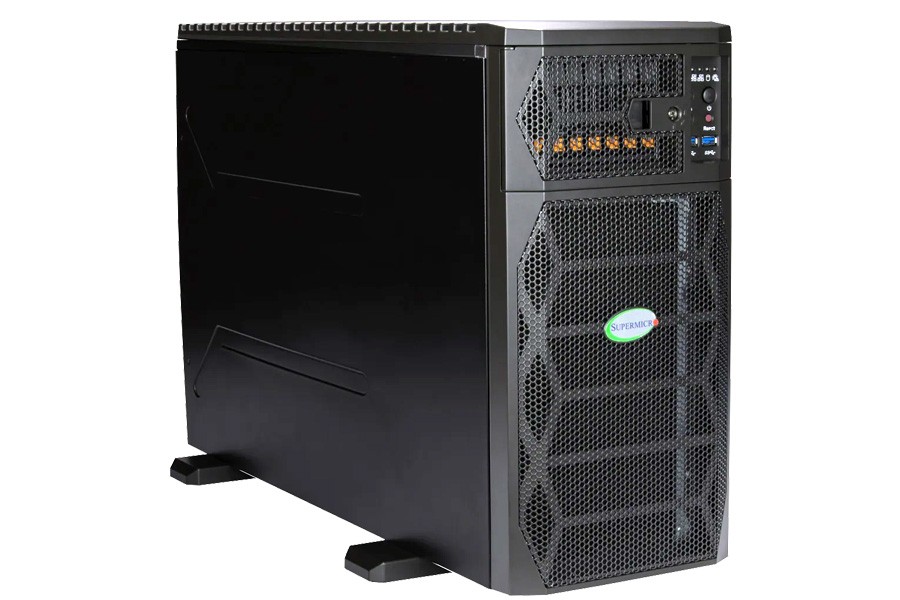

Supermicro 8Bays Dual Processor Tower/5U Server

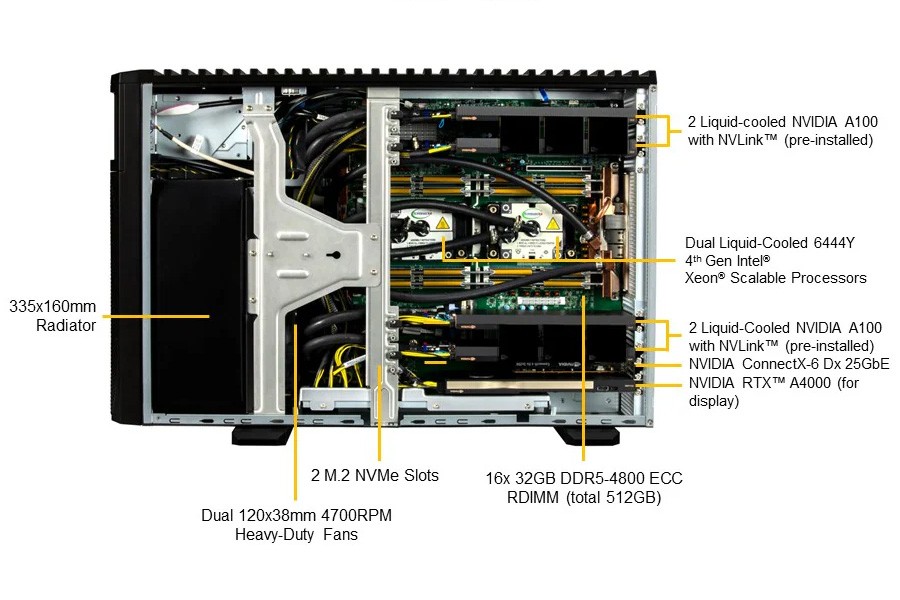

  • Acoustically optimized for quiet operation
  • Closed-loop liquid cooling for CPUs and GPUs
  • 4 liquid-cooled NVIDIA A100 GPUs with NVIDIA® NVLink™ (2+2) installed
  • Dual 4th Gen Intel® Xeon® Scalable Processors, 6444Y (16 cores at 3.6Ghz) installed
  • Dual-port active-cooled NVIDIA Connect-X6 Dx 25G Network Adapter installed
  • Supermicro Cloud Orchestrator AI software stack
  • Ubuntu 22.04 LTS installed
  • High Performance Computing, AI/Deep Learning Training, AI Development

Storage configuration notice:
External:
8x 2.5" Hot-swap HDD Bays
2x M.2
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-751GE-TNRT-NV1
Processor
CPU:
Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Core Count:
16C/32T; 30MB Cache per CPU

Note:
Supports up to 350W TDP CPUs (Air Cooled)
Supports up to 350W TDP CPUs (Liquid Cooled)​

Max GPU Count:
Up to 4 double-width GPU(s)

CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect

GPU-GPU Interconnect:
NVIDIA® NVLink® Bridge (2+2)

Note:
Dual 4th Gen Intel® Xeon® Scalable 6444Y (16 cores at 3.6Ghz) installed
Memory
Memory:
Slot Count: 16 DIMM slots
Max Memory (2DPC): 512GB 4800MT/s ECC DDR5

Memory Voltage:
1.1V

Note:
16x 32GB 4800MHz ECC DDR5 RDIMM DRAM installed
Chassis
Tower or 5U Rackmount Chassis
Dimensions
Height:
8.6" (218.4mm)
Width:
17.9" (454.7mm)
Depth:
27.6" (701mm)
Front Panel
Buttons:
Power On/Off button
Reset button

LEDs:
HDD activity LED
Information LED
Network 1 activity LED
Network 2 activity LED
Power status LED
Bios
BIOS Type:
AMI 32MB SPI Flash EEPROM
Onboard Devices
SATA:
SATA3 (6Gbps); RAID 0/1/5/10 support

Chipset:
Intel® C741

Network Connectivity:
2x 10GbE BaseT with Intel® X550-AT2
1x 1GbE BaseT with ASPEED AST2600
1x 25GbE SFP28 with NVIDIA Connect-X-6 Dx

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays
Hot-swap:
8x 2.5" hot-swap NVMe/SATA drive bays (2x 1.92TB NVMe Drives RAID 1 (OS), 4x 1.92TB NVMe Drives (Data) installed)

M.2:
2 M.2 NVMe
Expansion Slots
PCI-Express (PCIe):
7 PCIe 5.0 x16 FHFL slot(s)

Note:
4 NVIDIA Liquid-cooled A100, NVIDIA RTX A4000, NVIDIA Connect-X6 Dx 25G Network adapter installed
Power Supply
2U 2200W Redundant Power Supply for Workstation
Dimension (W x H x L):
106.5 x 82.1 x 203.5 mm
AC Input:
1200W: 100-127Vac / 9.5A-12A / 50-60Hz
1800W: 200-220Vac / 9.5A-10A / 50-60Hz
1980W: 220-230Vac / 9.5A-10A / 50-60Hz
2200W: 220-240Vac / 9.6A-11.8A / 50-60Hz (UL/cUL only)
2090W: 230-240Vac / 9.8A-10A / 50-60Hz
2090W: 230-240Vdc / 9.8A-10A / 50-60Hz (China only)
Output Type:
Backplanes (connector)
Certification:
Titanium Level
Input Output
SATA:
2 SlimSAS port(s)
2 SuperDOM port(s)

NVMe:
4 NVMe U.2

LAN:
1 RJ45 1GbE (Dedicated IPMI port)
2 RJ45 10GbE

USB:
2 USB 3.2 Gen1x2; port(s) (2 Front_USB)
1 USB 3.2 Gen2x1 (Type C) port(s) (1 Rear_USB)
3 USB 3.2 Gen1 port(s) (3 Rear_USB)

Video:
1 VGA port(s)
Cooling
1 fan 8CM Fan(s)
2 fan 12CM Fan(s)
Operating Environment
Operating Temperature:
   10°C ~ 25°C (50°F ~ 77°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:
OOB Management Package (SFT-OOB-LIC )
Redfish API
IPMI 2.0
SSM
Intel® Node Manager
SPM
KVM with dedicated LAN
SUM
NMI
Watch Dog
SuperDoctor® 5
Power Configurations:
ACPI Power Management
Power-on mode for AC power recovery
SYS-751GE-TNRT-NV1SYS-751GE-TNRT-NV1SYS-751GE-TNRT-NV1SYS-751GE-TNRT-NV1
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $260.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $286.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $780.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $221.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $325.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $126.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $158.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 1TB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $291.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $466.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $861.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
