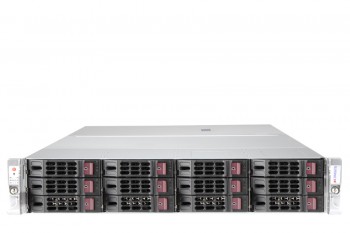

Supermicro 2U 12Bays Dual Processor Rackmount Server

Supermicro 2U 12Bays Dual Processor Rackmount Server

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
Optional PCIe slot configurations up to 8 PCIe 4.0 x8 or 4 PCIe 4.0 x16 slots with support for double-width GPU/Accelerator cards
Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
4 heavy duty hot-swap fans with optimal fan speed control
Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server

Storage configuration notice:
External:
12x 3.5" Hot-swap Drive Bays
2x M.2

To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 1 NIC and 1 Drive). Nic adapter requirement includes either 1 AIOM nerworking card or 1 standard PEIe NIC adapter.

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	SYS-620H-TN12R
Processor	Processor CPU: Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Core Count: Up to 40C/80T; Up to 60MB Cache per CPU Note: Supports up to 270W TDP CPUs (Air Cooled) GPU Max GPU Count: Up to 4 double-width GPU(s)
Memory	Memory: Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 Supports Intel® Optane™ persistent memory 200 series Memory Voltage: 1.2V
Chassis	2U Rackmount Chassis
Dimensions	Height: 3.5" (88.9 mm) Width: 17.2" (437 mm) Depth: 31.6" (803 mm)
Front Panel	LED: HDD activity LAN1 activity Power System information Buttons: Power On/Off UID button
Bios	BIOS Type: AMI 256MB SPI Flash
Onboard Devices	SATA: SATA (6Gbps) ; RAID 0/1/5/10 support NVMe: NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) Chipset: Intel® C621A Network Connectivity 2 RJ45 1GbE with Intel® I350-AM2 (optional) 4 RJ45 1GbE with Intel® I350-AM4 (optional) 4 SFP 1GbE with Intel® I350-AM4 (optional) 2 RJ45 10GBASE-T with Intel® X550-AT2 (optional) 2 SFP+ 10GbE with Intel® X710-BM2 (optional) 4 SFP+ 10GbE with Intel® XL710-BM1 (optional) 4 SFP+ 10GbE with Intel® X710-TM4 (optional) 2 SFP28 25GbE with Broadcom® BCM57414 (optional) 4 SFP28 25GbE (optional) 2 QSFP28 100GbE with Broadcom® BCM57508 (optional) IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays	Default: Total 12 bay(s) 12 front hot-swap 3.5" NVMe/SAS/SATA drive bay(s) (NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe/SATA slot(s) (M-key 2280/22110)
Expansion Slots	Default 8 PCIe 4.0 x8 (in x16) FH/10.5″L slot(s) 2 PCIe 4.0 x16 AIOM slot(s) (OCP 3.0 compatible) Option A* 2 PCIe 4.0 x8 (in x16) FH/10.5″L slot(s) 3 PCIe 4.0 x16 FH/10.5″L slot(s) 2 PCIe 4.0 x16 AIOM slot(s) (OCP 3.0 compatible) (Requires additional parts, please contact us. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Power Supply	2x 1200W Redundant Titanium Level Hot-plug power supplies Dimension (WxHxL): 73.5 x 40 x 265 mm +12V: Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) 12V SB: Max: 2.1A / Min: 0A AC Input: 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) Output Type: Backplanes (gold finger)
Cooling	4 counter-rotating 80x80x38mm Fan(s)
Operating Environment	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
Details	Security Hardware: Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant Features: Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown PC Health Monitoring CPU: Monitors for CPU Cores, Chipset Voltages, Memory FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

CPU

Select CPU:

Intel® Xeon® Scalable 3rd Gen Silver Processor 4310 (2.10 GHz 120W)

Intel® Xeon® Scalable 3rd Gen Silver Processor 4314 (2.40 GHz 135W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5315Y (3.20 Ghz 140W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5317 (3.00 Ghz 150W)

Added

Intel® Xeon® Scalable 3rd Gen Silver Processor 4316 (2.30 GHz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5318Y (2.10 Ghz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5318H (2.50 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5318N (2.10 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5320H (2.40 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5320 (2.20 Ghz 185W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5318S (2.10 Ghz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5320T (2.30 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6330H (2.00 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6330 (2.00 Ghz 205W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6336Y (2.40 GHz 185W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6330N (2.20 Ghz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6334 (3.60 Ghz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6346 (3.10 GHz 205W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6342 (2.80 GHz 230W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6338 (2.00 GHz 205W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6338T (2.10 GHz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6338N (2.20 GHz 185W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6348H (2.30 GHz 165W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8353H (2.50 GHz 150W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8351N (2.40 GHz 225W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6348 (2.60 GHz 235W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8356H (3.90 GHz 190W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352Y (2.20 GHz 205W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352V (2.10 GHz 195W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8354H (3.10 GHz 205W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352M (2.30 GHz 185W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8358P (2.60 GHz 240W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8358 (2.60 GHz 250W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352S (2.30 GHz 185W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360H (3.00 GHz 225W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360Y (2.40 GHz 250W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8362 (2.80 GHz 265W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8368 (2.40 GHz 270W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8368Q (2.60 GHz 270W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360HL (3.00 GHz 225W)

MEMORY

Select Memory Capacity:

Samsung 8GB DDR4 3200 ECC RDIMM Memory

Added

Samsung 16GB DDR4 3200 ECC RDIMM Memory

Samsung 32GB DDR4 3200 ECC RDIMM Memory

Samsung 64GB DDR4 3200 ECC RDIMM Memory

Samsung 128GB DDR4 3200 ECC LRDIMM Memory

Enterprise-Class HDD/SSD

Select Storage Capacity:

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

NVMe M.2

*No NVMe M.2 Drives

Added

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

NETWORK CARD

NETWORK ADAPTERNETWORK ADAPTERNETWORK ADAPTER

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Added

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

GPU/Coprocessor

*No GPU

Added

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

NVIDIA L40 48GB GDDR6 GPU Card

NVIDIA L40S 48GB GDDR6 GPU Card

NVIDIA A100 80GB HBM2e GPU Card

NVIDIA H100 80GB HBM2e GPU Card

OPERATING SYSTEM

Select Operating System:

*Please contact our sales for more operating system options

Added

Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Linux Fedora Workstation Edition Linux 64-bit (No Media)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

Select Warranty:

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
