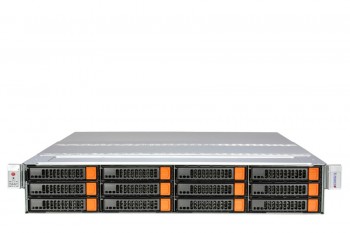

Supermicro 2U 24Bays Single AMD Processor Rackmount Srever

Supermicro 2U 24Bays Single AMD Processor Rackmount Srever

Single Socket SP5 4th Generation AMD EPYC™ 9004 Scalable Processors. Up to 290W TDP.
12 ECC DDR5-4800: LRDIMM/RDIMM
Two Dedicated PCIe 5.0 x16 AIOM slots (OCP 3.0 SFF compliant)
Up to 6x PCIe 5.0 Slots (Slot #2 populated by 3908 controller)
Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
24 3.5" Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots, 4x Optional Rear NVMe Slots, 2x NVMe M.2 (form factor: 2280/22110)
4x 8cm hot-swap counter-rotate redundant PWM cooling fans
1600W Redundant Power Supplies Titanium Level (96%)
HW RAID support via Broadcom® 3908
Enterprise Server, iSCSI SAN, HPC, Data Center, Database Processing & Storage, Corporate Database, Appliance Optimized Storage Building Blocks

Complete system only: to maintain quality and integrity, this product is sold only as a complete-assembled system (with 1CPU, 4 DIMM and 6 HDDs and 1 AIOM/NIC).

Storage configuration notice:
External:

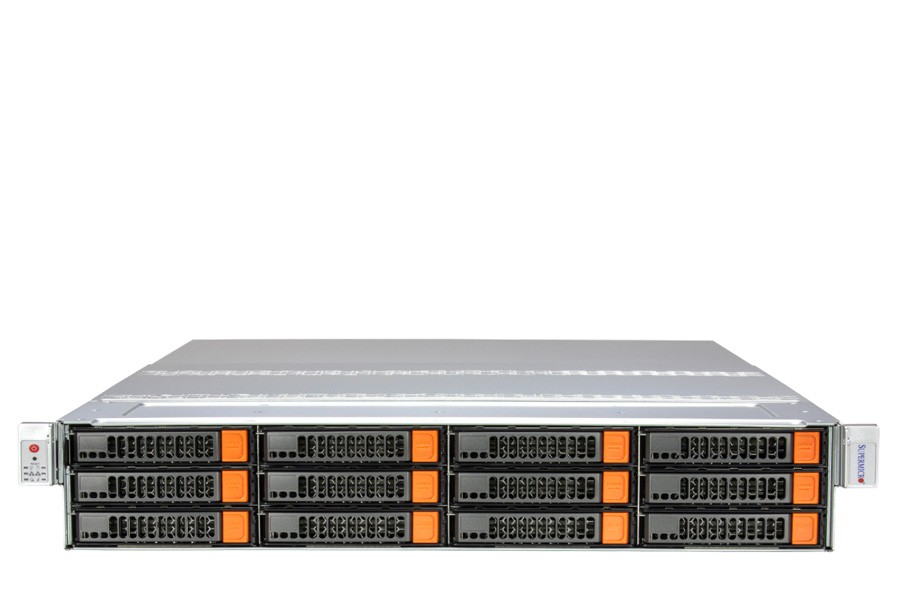

24x 3.5" Hot-swap HDD Bays

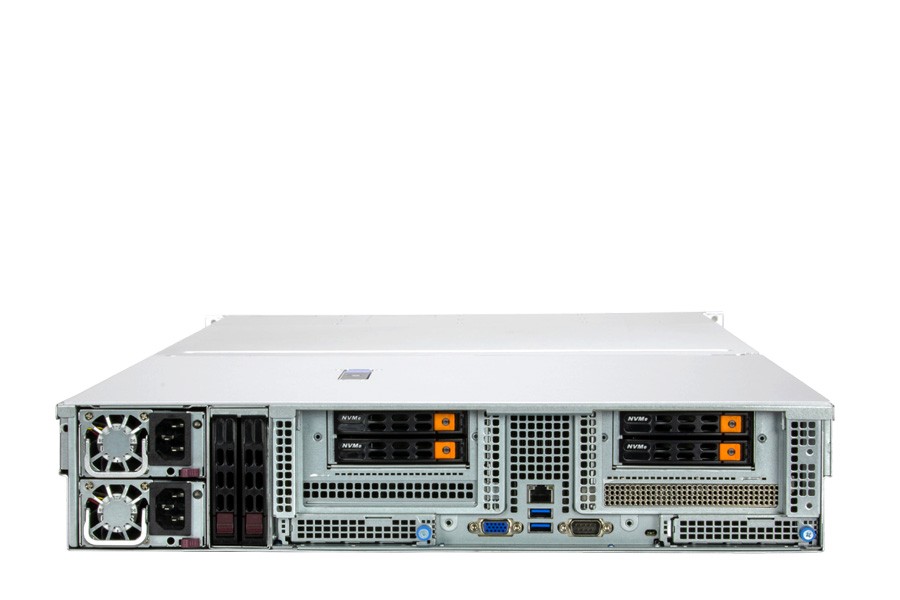

2x Rear 2.5" HDD Bays

2x M.2

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	ASG-2015S-E1CR24H
Processor	CPU: Single Socket SP5 AMD EPYC™ 9004 Series Processors Core Count: Up to 84C/168T; Up to 384MB Cache Note: Supports 200W - 290W TDP CPUs (Air Cooled)
Memory	Memory: Slot Count: 12 DIMM slots Max Memory (2DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM/LRDIMM Memory Voltage: 1.1V
Chassis	2U Rackmount chassis
Dimensions	Height: 3.5" Width: 17.2" Depth: 34"
Front Panel	LED: Network activity Power status SSD activity System information (overheat/UID) Buttons: Power On/Off
Bios	BIOS Type: AMI 32MB SPI Flash EEPROM
Onboard Devices	Chipset: System on Chip Network Connectivity: Via AIOM NVMe

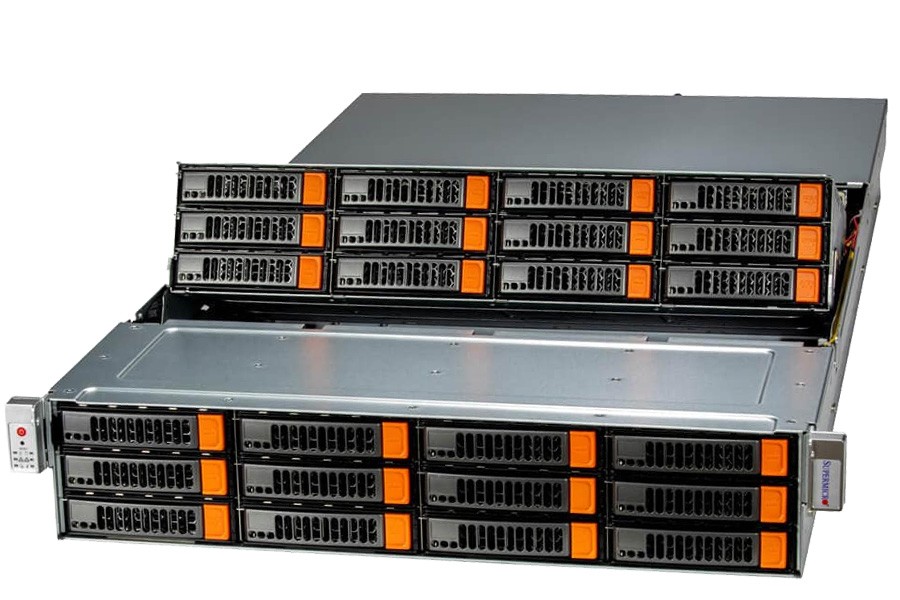

HDD Drive Bays	Drive Bays Configuration: Default: Total 26 bay(s) 12 front hot-swap 3.5" SAS/SATA drive bay(s) 12 top-loading hot-swap 3.5" SAS/SATA drive bay(s) 2 rear hot-swap 2.5" SATA drive bay(s) Option A: Total 28 bay(s) 12 front hot-swap 3.5" SAS/SATA drive bay(s) 12 top-loading fixed 3.5" SAS/SATA drive bay(s) 2 rear hot-swap 2.5" SATA drive bay(s) 2 rear hot-swap 2.5" NVMe drive bay(s) Option B: Total 30 bay(s) 12 front hot-swap 3.5" SAS/SATA drive bay(s) 12 top-loading hot-swap 3.5" SAS/SATA drive bay(s) 4 rear hot-swap 2.5" NVMe drive bay(s) 2 rear hot-swap 2.5" SATA drive bay(s) M.2: 2 M.2 NVMe slot(s) (M-key 2280/22110)
Expansion Slots	PCI-Express (PCIe) Configuration: Default 5 PCIe 5.0 x16 FHHL slot(s) 1 PCIe 5.0 x8 FHHL slot(s) 2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible) Option A 3 PCIe 5.0 x16 FHHL slot(s) 1 PCIe 5.0 x8 FHHL slot(s) 2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible) Option B 2 PCIe 5.0 x16 FHHL slot(s) 2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
Power Supply	1x 1600W Redundant Titanium Level power supply Dimension (WxHxL): 73.5 x 40 x 203 mm +12V: Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133A / Min: 0A (200Vac-240Vac) 12V SB: Max: 2.1A / Min: 0A AC Input: 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac / 50-60Hz Output Type: Backplanes (gold finger)
Input Output	LAN: 1 RJ45 1 GbE Dedicated IPMI LAN port(s) USB: 2 USB 3.0 port(s) (rear) Video: 1 VGA port(s)
Cooling	Fans: 4 Heavy Duty 8cm Fan(s)
Operating Environment	ROHS: RoHS Compliant Environmental Spec.: Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Details	Management Software: SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) SuperDoctor® 5 Super Diagnostics Offline TAS: Supermicro Thin-Agent Service (TAS) SAA(new!) Power configurations: Power-on mode for AC power recovery ACPI Power Management Security Hardware: Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant Features: Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown PC Health Monitoring CPU: Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

CPU

Select CPU:

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

Added

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

MEMORY

Select Memory Capacity:

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Added

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Enterprise-Class HDD/SSD

Select Storage Capacity:

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

NVMe M.2

*No NVMe M.2 Drives

Added

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

OPERATING SYSTEM DRIVE

*No OS Drive

Added

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

NETWORK CARD

NETWORK ADAPTERNETWORK ADAPTERNETWORK ADAPTER

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Added

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

OPERATING SYSTEM

Select Operating System:

*Please contact our sales for more operating system options

Added

Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Linux Fedora Workstation Edition Linux 64-bit (No Media)

Debian Linux (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

Select Warranty:

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
