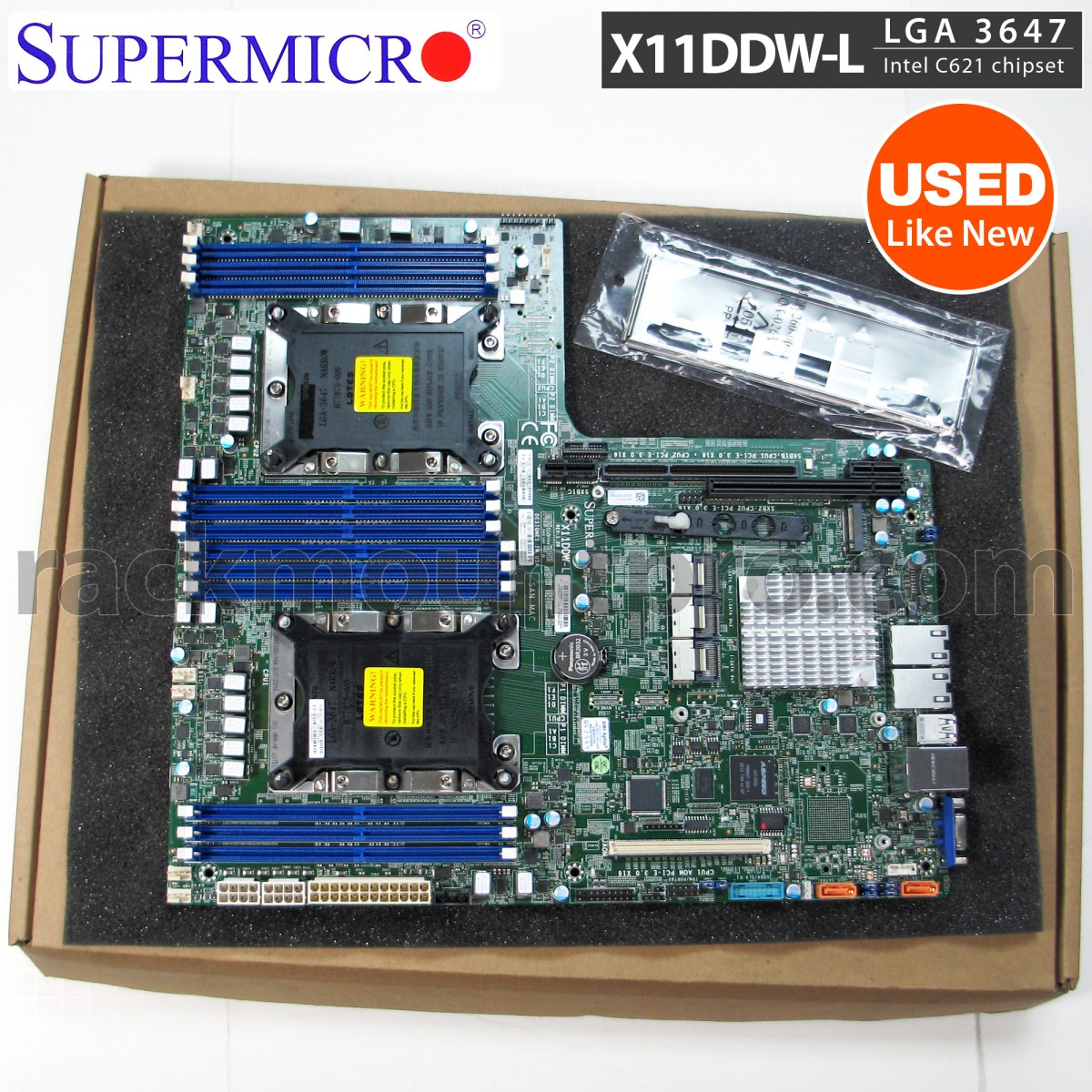

Supermicro X11DDW-L Motherboard USED

Supermicro X11DDW-L Motherboard USED

( 3 Pcs in Stock)

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU

X11DDW-L_USED

Details

Physical Stats
Form Factor:
Proprietary WIO
Dimension:
12.3" x 13.4" (31.24cm x 34.04cm)

Processor
CPU:
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
Note:
BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity:
12 DIMM slots
Up to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/s
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type:
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes:
LRDIMM: 64GB, 128GB
RDIMM: 64GB, 128GB
Memory Voltage:
1.2V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset:
Intel® C621
SATA:
Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI:
ASPEED AST2500
Graphics:
1 ASPEED AST2500 BMC port(s)
Network Controllers:
Dual LAN with GbE, from C621

Input / Output
LAN:
2 RJ45 Gigabit Ethernet LAN ports
USB:
6 USB 3.2 Gen1 port(s) (2 via header; 4 rear)
Video Output:
1 VGA port(s)
DOM:
2 SuperDOM (Disk on Module) ports
TPM:
1 TPM Header

Expansion Slots
PCIe:
1 PCIe 3.0 x32 Left Riser Slot,
1 PCIe 3.0 x16 Right Riser Slot,
1 PCIe 3.0 x16 for Add-On-Module (AOM)
M.2:
M.2 Interface: PCIe 3.0 x4
Form Factor: 22110, 2280, 2242, 2260
Key: M-Key

System BIOS
BIOS Type:
256MB UEFI

Management
Software:
SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog

PC Health Monitoring
Voltage:
Monitors CPU voltages, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
LED:
UID/Remote UID
Power LED
BMC/IPMI Heartbeat LED
CPU / System Overheat LED
Temperature:
Monitoring for CPU and chassis environment
CPU thermal trip support
FAN:
6x 4-pin fan headers (up to 6 fans)
PWM fan speed control
6 fans with tachometer status monitoring
Status monitoring for speed control
Other Features:
UID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection

Operating Environment
Operating Temperature Range:
10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range:
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range:
8% - 90% (non-condensing)
Non Operating Relative Humidity Range:
5% - 95% (non-condensing)

Condition:
Used (Proprietary With IO)

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
