4048B-TR4FT

Please Inquire

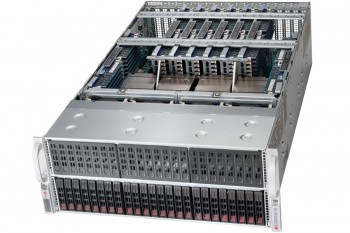

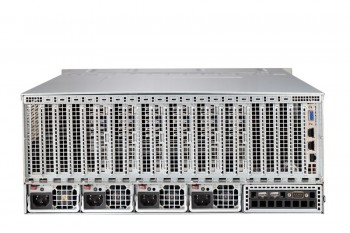

Supermicro 4U up to 48 Bays 4-Way SuperServer

Quad socket R1 (LGA 2011) supports Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
Up to 12TB DDR4 (128GB 3SDS LRDIMM); 96x DIMM slots (8x memory module boards: X10QBi-MEM2)
Up to 11x PCI-E 3.0 slots (4 x16, 7 x8)
I/O ports via Add-on Card: 2x 10Gb LAN, 1x Dedicated LAN for IPMI Remote Management, 1x VGA
24x 2.5" Hot-swap SAS3/SATA3 HDD or SSD (selected RAID/HBA cards); 48x 2.5" Hot-swap HDD/SSD optional
4x 9cm + 3x 8cm Heavy-duty Fans
1620W Redundant (N+1) Power Supplies, Platinum Level (94%)

Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact our sales rep for special requirements.
96/64/32 DIMMs are the recommended memory population configurations for the best performance.

SPECIFICATIONS

SKU	4048B-TR4FT

Chipset

Intel® C602J chipset

CPU	Intel® Xeon® E7-8800 v3/v4 / E7-4800 v3/v4 family

Memory

up to 6TB DDR4 DIMM

HDD	24x 2.5" (default) & 48x 2.5" (optional) Hard drive bays

Power Supply

1620W Redundant PSU

PHOTOS

4048B-TR4FT

MY CONFIGURATION

CPU

*No Processor

Added

Intel® Xeon® Processor E7-4809 v4 (20M Cache, 2.10 GHz,115W)

Intel® Xeon® Processor E7-4820 v3 (1.90 GHz 115W)

Intel® Xeon® Processor E7-4820 v4 (25M Cache, 2.00 GHz,115W)

Intel® Xeon® Processor E7-4830 v3 (2.10 GHz 115W)

Intel® Xeon® Processor E7-4830 v4 (35M Cache, 2.00 GHz,115W)

Intel® Xeon® Processor E7-4850 v3 (2.20 GHz 115W)

Intel® Xeon® Processor E7-4809 v3 (2.00 GHz 115W)

Intel® Xeon® Processor E7-4850 v4 (40M Cache, 2.10 GHz,115W)

Intel® Xeon® Processor E7-8860 v3 (2.20 GHz 140W)

Intel® Xeon® Processor E7-8870 v3 (2.10 GHz 140W)

Intel® Xeon® Processor E7-8867 v3 (2.50 GHz 165W)

Intel® Xeon® Processor E7-8860 v4 (45M Cache, 2.20 GHz,140W)

Intel® Xeon® Processor E7-8870 v4 (50M Cache, 2.10 GHz,140W)

Intel® Xeon® Processor E7-8867 v4 (45M Cache, 2.40 GHz,165W)

Intel® Xeon® Processor E7-8880 v3 (2.30 GHz 150W)

Intel® Xeon® Processor E7-8880L v3 (2.00 GHz 115W)

Intel® Xeon® Processor E7-8893 v3 (3.20 GHz 140W)

Intel® Xeon® Processor E7-8891 v3 (2.80 GHz 165W)

Intel® Xeon® Processor E7-8890 v3 (2.50 GHz 165W)

Intel® Xeon® Processor E7-8893 v4 (60M Cache, 3.20 GHz)

Intel® Xeon® Processor E7-8890 v4 (60M Cache, 2.20 GHz,165W)

MEMORY

*No Memory

Added

Enterprise-Class HDD/SSD

*No Hard Drive

Added

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Linux Ubuntu LTS Workstation Edition 32/64-bit (No Media)

Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Linux Fedora Workstation Edition Linux 64-bit (No Media)

Debian Linux (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2012 Standard R2 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
