7088B-TR4FT

Please Inquire

Supermicro 7U 8 Way up to 12 Hot-swap and 20 internal Bays Multiple Processor SuperServer

Intel® Xeon® processor E7-8800 v4/v3 up to 24-Core, 8 Sockets R1 (LGA 2011)
Up to 24TB in 192 DDR4 DIMM slots
Up to 15 PCI-E 3.0 slots (8 x16, 7 x8 in x16)
4x 10Gb LAN (SIOM), 1x dedicated LAN for IPMI
1x VGA, 2x USB 2.0, 1x COM via KVM
Up to 12 Hot-swap 2.5" SAS3 HDDs (w/ RAID cards),
20x 2.5" or 6x 3.5" internal HDDs (w/ RAID cards)
5x 1600W Redundant (N+1) Power Supplies, Titanium Level (96%)

Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact sales rep for special requirements.

SPECIFICATIONS

SKU	7088B-TR4FT

Chipset

Intel® C602J chipset

CPU	Intel® Xeon® E7-8800 v4/v3 family

Memory

up to 24TB DDR4 LRDIMM

HDD	12 Hot-swap 2.5" bays 20x 2.5" or 6x 3.5" internal bay

Power Supply

1600W Redundant PSU

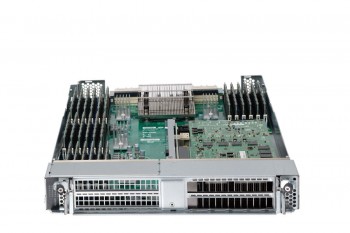

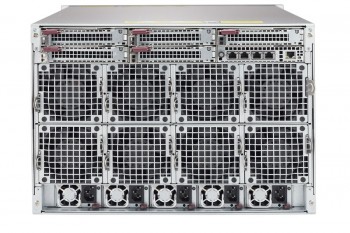

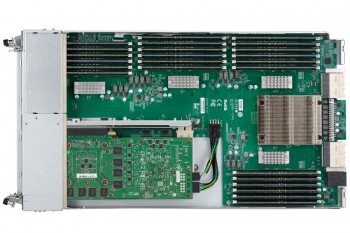

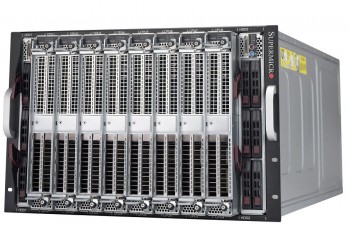

PHOTOS

7088B-TR4FT

MY CONFIGURATION

CPU

*No Processor

Added

Intel® Xeon® Processor E7-8860 v4 (45M Cache, 2.20 GHz,140W)

Intel® Xeon® Processor E7-8867 v4 (45M Cache, 2.40 GHz,165W)

Intel® Xeon® Processor E7-8870 v4 (50M Cache, 2.10 GHz,140W)

Intel® Xeon® Processor E7-8893 v4 (60M Cache, 3.20 GHz)

Intel® Xeon® Processor E7-8890 v4 (60M Cache, 2.20 GHz,165W)

MEMORY

*No Memory

Added

Enterprise-Class HDD/SSD

*No Hard Drive

Added

(optional) Enterprise-Class HDD/SSD

*No Hard Drive

Added

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Debian Linux (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Microsoft Windows Server 2012 Standard R2 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
	ADD TO QUOTE
