5029C-T

Please Inquire

OVERVIEW

Supermicro 4Bays Single Processor Mini-tower Server

Single socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
Intel® C242 chipset
Up to 64GB ECC UDIMM, up to DDR4-2666MHz; 2 DIMM slots
1x PCI-E 3.0 x16 slot (for LP AOC)
4x Hot-swap 3.5" drive bays with BPN, 2x fixed 2.5" drive bays, 1x optional slim DVD-ROM bay
M.2 Interface: 1x PCI-E 3.0 x4 or SATA 3.0, M.2 Form Factor: 2280, M.2 Key: M-Key
2x GbE LAN ports, 1x dedicated IPMI LAN
2x USB 3.1 Gen1 (front), 2x USB 3.1 Gen1 (rear), 2x USB 2.0 (rear)
1x VGA, 1x COM, 1x TPM
250W Bronze Level power supply
File server/ Entry Storage, Local Cloud and Web Hosting, Mainstream, Compact

SPECIFICATIONS

SKU

5029C-T

Chipset

Intel® C242 chipset

CPU	Intel® Xeon® E-2100 Family

Memory

Up to 64GB ECC UDIMM

HDD	4x 3.5" Hot-swap HDD Bays

Power Supply

250W Multi-output PSU

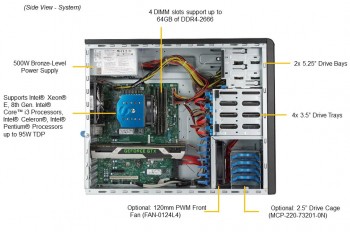

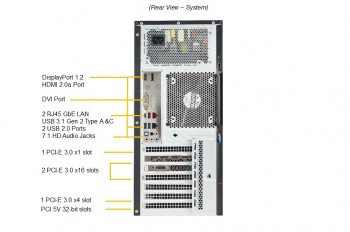

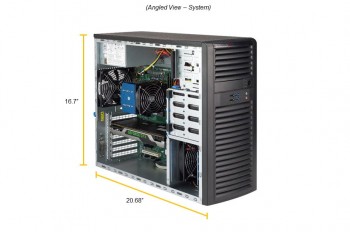

PHOTOS

5029C-T

MY CONFIGURATION

CPU

MEMORY

Enterprise-Class HDD/SSD

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

(optional) Enterprise-Class HDD/SSD

*No Hard Drive

Added

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Linux Fedora Workstation Edition Linux 64-bit (No Media)

Debian Linux (No Media) (32-Bit/64-Bit)

Linux Ubuntu LTS Workstation Edition 32/64-bit (No Media)

Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000

Please Inquire
