1124US-TNRP

Please Inquire

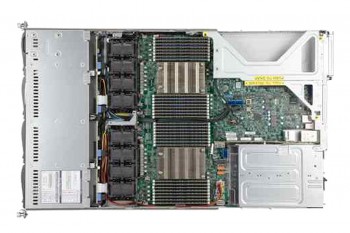

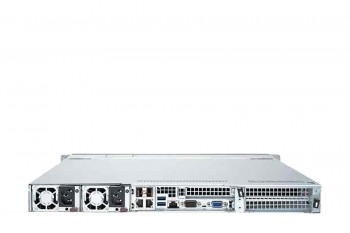

Supermicro 1U 12Bays Dual AMD Processor Rackmount Server

Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
Expansion slots: 2 PCI-E 4.0 x16 (FH, 9.5"L), 1 PCI-E 4.0 x16 (LP), 1 PCI-E 4.0 x16 (internal proprietary LP slot)
Integrated IPMI 2.0 + KVM with dedicated LAN, Software Out of Band License, key (SFT-OOB-LIC) included for OOB BIOS management
Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel X710-TM4
Drive Bays: 12 Hot-swap 2.5" U.2 NVMe drive bays or SATA3/SAS3 (via optional SAS kit)
1200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)
Virtualization, Cloud Computing, High End Enterprise Server

Storage configuration notice:
External:
12x 2.5" Hot-swap U.2 Drive Bays

To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs & at least 24/32 cores per CPU is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 storage drive.

SPECIFICATIONS

SKU	AS-1124US-TNRP

Chipset

System on Chip

CPU	AMD EPYC™ 7003 Series

Memory

up to 8TB DIMM

HDD	12x 2.5" Hot-swap U.2 drive bays

Power Supply

1200W Redundant PSU

PHOTOS

MY CONFIGURATION

CPU

AMD ROME EPYC™ 7252 Processor 3.1Ghz,120W)

AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)

AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)

AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)

AMD ROME EPYC™ 7302P Processor (3.0Ghz,155W)

AMD EPYC 3rd Gen MILAN 7313P 16 Core 3.00GHz

AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)

MD EPYC 3rd Gen MILAN 7313 16 Core 3.00GHz

AMD ROME EPYC™ 7402P Processor (2.8Ghz,180W)

AMD EPYC 3rd Gen MILAN 7443P 24 Core 2.85GHz

AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)

AMD EPYC 3rd Gen MILAN 7343 16 Core 3.20GHz

AMD EPYC 3rd Gen MILAN 7453 28 Core 2.75GHz

AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)

AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)

AMD EPYC 3rd Gen MILAN 7443 24 Core 2.85GHz

AMD ROME EPYC™ 7502P Processor (2.5Ghz,180W)

AMD EPYC 3rd Gen MILAN 72F3 8 Core 3.70GHz

AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)

AMD EPYC 3rd Gen MILAN 7543P 32 Core 2.80GHz

AMD EPYC 3rd Gen MILAN 7513 32 Core 2.60GHz

AMD EPYC 3rd Gen MILAN 74F3 24 Core 3.20GHz

AMD EPYC 3rd Gen MILAN 7413 24 Core 2.65GHz

AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)

AMD EPYC 3rd Gen MILAN 73F3 16 Core 3.50GHz

AMD EPYC 3rd Gen MILAN 7543 32 Core 2.80GHz

AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)

AMD ROME EPYC™ 7702P Processor (2.0Ghz,200W)

AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)

AMD EPYC 3rd Gen MILAN 75F3 32 Core 2.95GHz

AMD EPYC 3rd Gen MILAN 7643 48 Core 2.30GHz

AMD EPYC 3rd Gen MILAN 7713P 64 Core 2.00GHz

AMD EPYC 3rd Gen MILAN 7663 56 Core 2.00GHz

AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)

AMD ROME EPYC™ 7742 Processor (2.25Ghz,225W)

AMD EPYC 3rd Gen MILAN 7713 64 Core 2.00GHz

AMD EPYC 3rd Gen MILAN 7763 64 Core 2.45GHz

MEMORY

Samsung 8GB DDR4 3200 ECC RDIMM Memory

Added

Samsung 16GB DDR4 3200 ECC RDIMM Memory

Samsung 32GB DDR4 3200 ECC RDIMM Memory

Samsung 64GB DDR4 3200 ECC RDIMM Memory

Samsung 128GB DDR4 3200 ECC LRDIMM Memory

NVMe U.2/U.3

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Added

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

GRAID SupremeRAID SR-1000 card

NETWORK CARD

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

*No Network Adapter

Added

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Linux Fedora Workstation Edition Linux 64-bit (No Media)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
