SYS-821GE-TNHR

$409,176.00

Supermicro 8U 15Bays Dual Processor Rackmount Server

5th/4th Gen Intel® Xeon® Scalable processor support
32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
8 PCIe Gen 5.0 X16 LP, 2 PCIe Gen 5.0 X16 FHHL Slots, 2 PCIe Gen 5.0 X16 FHHL Slots (optional)
Flexible networking options
2 M.2 NVMe for boot drive only, 16x 2.5" Hot-swap NVMe drive bays (12x by default, 4x optional), 3x 2.5" Hot-swap SATA drive bays, Optional: 8x 2.5" Hot-swap SATA drive bays
10 heavy duty fans with optimal fan speed control
Optional: 8x 3000W (4+4) Redundant Power Supplies, Titanium Level 6x 3000W (4+2) Redundant Power Supplies, Titanium Level
High Performance Computing, AI/Deep Learning Training, Industrial Automation, Retail, Healthcare, Conversational AI, Business Intelligence & Analytics, Drug Discovery, Climate and Weather Modeling, Finance & Economics

To maintain quality and integrity, this product is sold only as a completely-assembled system

System (SKU) SYS-821GE-TNHR
Processor Spec 2x Intel® Xeon® EMR 8568Y+ 2P 48C 2.3G 350W
GPU 8x NVIDIA H200 141GB SXM5
Memory 3 TB (32x 96 GB DDR5)
Storage 30.4 TB raw capacity (8x 3.8 TB NVMe SSDs)
Boot Drives 2x 480 GB M.2 SSD
Networking 10x 400G HDR IB CX7 NICs
Or 8x 400Gb IB and 2x 400Gb/200Gb ethernet

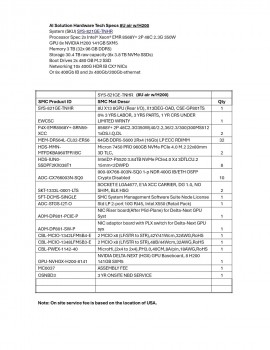

	SYS-821GE-TNHR (8U air w/H200)
SMC Product ID	SMC Mat Descr	Qty

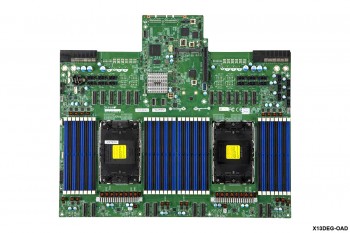

SYS-821GE-TNHR	8U X13 8GPU (Rear I/O), X13DEG-OAD, CSE-GP801TS	1
EWCSC	0% 3 YRS LABOR, 3 YRS PARTS, 1 YR CRS UNDER LIMITED WRNTY	1
P4X-EMR8568Y+-SRN59-XCC	8568Y+ 2P 48C2.3G350W(40/2.2,36/2.3/300)300MS512 1xDS.I.Q.DL	2
MEM-DR564L-CL02-ER56	64GB DDR5-5600 2Rx4 (16Gb) LP ECC RDIMM	32
HDS-MMN-MTFDKBA960TFR1BC	Micron 7450 PRO 960GB NVMe PCIe 4.0 M.2 22x80mm 3D TLC,	2
HDS-IUN0-SSDPF2KX038T1	IntelD7-P5520 3.84TB NVMe PCIe4.0 X4 3DTLCU.2 15mm<2DWPD	8
AOC-CX766003N-SQ0	900-9X766-003N-SQ0 1-p NDR 400G IB/ETH OSFP Crypto Disabled	10
SKT-1333L-0001-LTS	SOCKET E LGA4677, E1A XCC CARRIER, DG 1.0, NO SHIM, BLK HSG	2
SFT-DCMS-SINGLE	SMC System Management Software Suite Node License	1
AOC-STGS-I2T-O	Std LP 2-port 10G RJ45, Intel X550 (Retail Pack)	1
AOM-DP801-PCIE-P	NIC Riser board(After Mid-Plane) for Delta-Next GPU Syst	1
AOM-DP801-SW-P	NIC adaptor board with PLX switch for Delta-Next GPU sys	1
CBL-MCIO-1342LFM5B4-E	2 MCIO x8 (LF/STR to STR),42Y/41Wcm,32AWG,RoHS	1
CBL-MCIO-1348LFM5B3-E	2 MCIO x8 (LF/STR to STR),48B/44Wcm,32AWG,RoHS	1
CBL-PWEX-1142-40	MicroHi,(2x4 to 2x4),PH3.0,40CM,8A/pin,18AWG,RoHS	1
GPU-NVHGX-H200-8141	NVIDIA DELTA-NEXT (HGX) GPU Baseboard, 8 H200 141GB SXM5	1
MC0037	ASSEMBLY FEE	1
OSNBD3	3 YR ONSITE NBD SERVICE	1

SPECIFICATIONS

SKU	SYS-821GE-TNHR

Chipset

Intel® C741

CPU	4th/5th Gen Intel® Xeon® Scalable Processors

Memory

up to 8TB DIMM

HDD	15x 2.5" Hot-swap HDD Bays

Power Supply

3000W Redundant PSU

PHOTOS

SYS-821GE-TNHR

MY CONFIGURATION

CPU

Intel® Xeon® Scalable 5th Gen Platinum Processor 8568Y (2.30 Ghz 350W)

Added

MEMORY

Samsung 96GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)

Added

NVMe M.2

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Added

NVMe U.2/U.3

Intel D7-P5520 NVMe U.2 SSD 3.84TB

Added

NETWORK CARD

NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter

Added

GPU/Coprocessor

NVIDIA H200 141GB HBM3e GPU Card

Added

OPERATING SYSTEM

*Please contact our sales for more operating system options

Added

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

+ $99.00

Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)

+ $99.00

Linux Fedora Workstation Edition Linux 64-bit (No Media)

+ $99.00

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

+ $99.00

Debian Linux (No Media) (32-Bit/64-Bit)

+ $99.00

Microsoft Windows Server 2022 Standard 64-bit-1User

+ $799.00

Ethernet Adapter

Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card

Added

YMI WARRANTY

3 Years onsite NBD Service

Added

$409,176.00	ADD TO CART
