ARS-111GL-NHR

Please Inquire

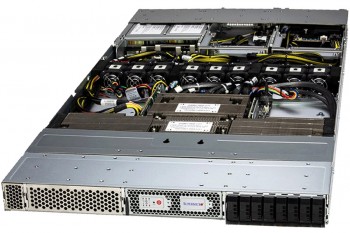

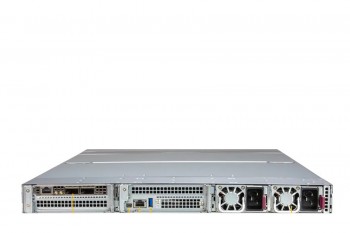

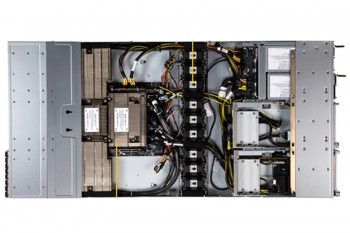

Supermicro 1U 8Bays NVIDIA Grace CPU Rackmount GPU Server

This system currently supports two E1.S drives direct to the processor and the onboard GPU only.

High density 1U GPU system with Integrated NVIDIA® H100 GPU
NVIDIA Grace Hopper™ Superchip (Grace CPU and H100 GPU)
NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900GB/s
Up to 576GB of coherent memory per node including 480GB LPDDR5X and 96GB of HBM3 for LLM applications
2x PCIe 5.0 x16 slots supporting NVIDIA BlueField®-3 or ConnectX®-7
9 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
This system supports two E1.S drives directly from the processor only.
High Performance Computing, AI/Deep Learning Training and Inference, Large Language Model (LLM) and Generative AI

Complete system only: to maintain quality and integrity, this product is sold only as a complete-assembled system

System (SKU) ARS-111GL-NHR

Processor and GPU Spec 72 Core Grace Processor with H100 96GB HBM3 on a superchip

Memory 480GB LPDDR5 with 96GB HBM3 memory for GPU (included on Superchip)

Storage 14T TB raw capacity (2x 7.0 TB NVMe SSDs)

Boot Drives 2x 960 GB M.2 SSD

Networking 1x 400G HDR IB CX7 NICs (GPU Fabric)

	ARS-111GL-NHR
SMC Product ID	SMC Mat Descr	Qty

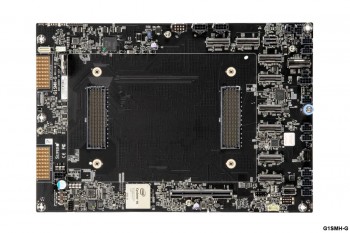

ARS-111GL-NHR	MBD-G1SMH-G-P 1U ARM CG1 GEN5 PCIE CSE-GP101TS-R000NP	1
EWCSC	0% 3 YRS LABOR, 3 YRS PARTS, 1 YR CRS UNDER LIMITED WRNTY	1
HDS-IEN0-SSDPFUKX076T1	Intel D7-P5520 EDSFF E1.S PCIe 4x4TLC9.5mm 7.68TB <2DWPD	2
HDS-MMN-MTFDKBG960TFR1B	Micron 7450 PRO 960GB NVMe PCIe 4.0 M.2 22x110mm 3D TLC,	2
AOC-CX766003N-SQ0	900-9X766-003N-SQ0 1-p NDR 400G IB/ETH OSFP Crypto Disabled	1
GPU-NVGH480-12V	NVIDIA GH200, CG1, 480GB LPDDR5X CPU, 96GB HBM3 GPU, 12V	1
MC0037	ASSEMBLY FEE	1

SKU	ARS-111GL-NHR

Chipset

System on Chip

CPU	NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip

Memory

Up to 480GB ECC LPDDR5X

HDD	8x Hot-swap E1.S NVMe drive bays

Power Supply

2000W Redundant PSU
