X11SRA-F

$500.00

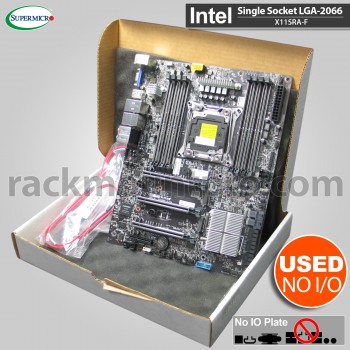

Supermicro X11SRA-F Single Socket Processor USED w/o IO

Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors
Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP
Intel® C422
Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, DDR4-2666MHz, in 8 DIMM slots(DDR4-2933MHz: RDIMM Max. Memory Capacity 256GB Registered ECC, LRDIMM Max. Memory Capacity 512GB Registered ECC)
3 PCIe 3.0 x16 (8/16/16, 48 lanes) 1 PCIe 3.0 x4 M.2 Interface: 2 PCIe 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key (RAID 0, 1) *M-Key for SSD and Optane (up to Intel POR). Intel VROC Hardware License Key is needed to enable RAID function. U.2 Interface: 2 PCIe 3.0 x4
Intel® C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
*iRST enabled, only SATA2 to SATA5 support RAID.
Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Aquantia 5G LAN chip AQC108
1 VGA port, VGA Port is default set to support IPMI

SKU

X11SRA-F

Chipset

Intel® C422

CPU	Intel® Xeon® W-2100/W-2200 Processors

Memory

8 DIMM slots

HDD

N/A

Power Supply

N/A

X11SRA-F
